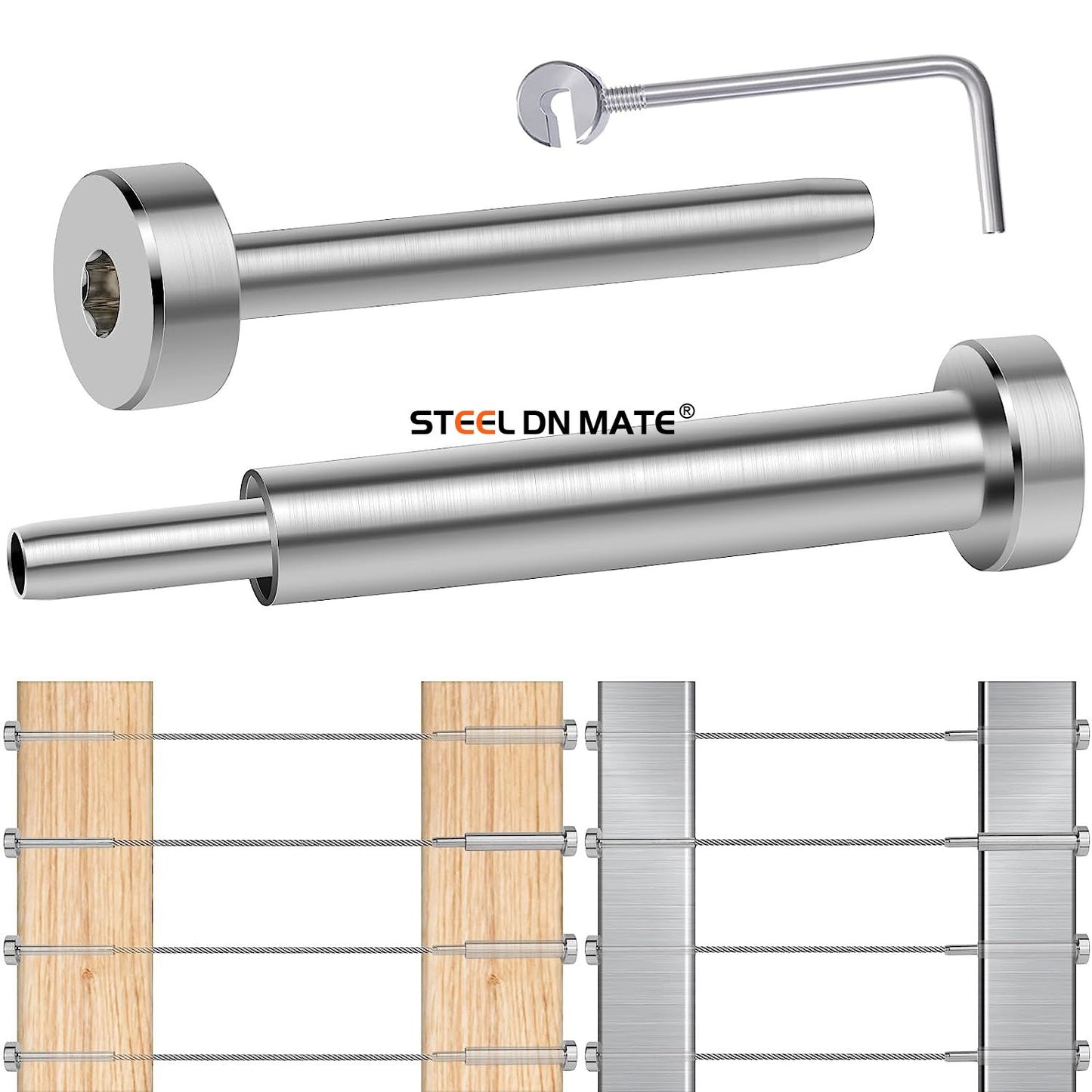

Steel DN Mate Hidden cable railing system

We design this system with invisible cable railing hardware, which including a terminal, and a tensioner, which can be hidden in wood or metal posts, so no more ugly tails outside anymore. The big tension and this invisible design can prevent outsiders to destroy it.

The well finish silver color bring you a modern also simple feeling, you will like this project.

FEATURES:

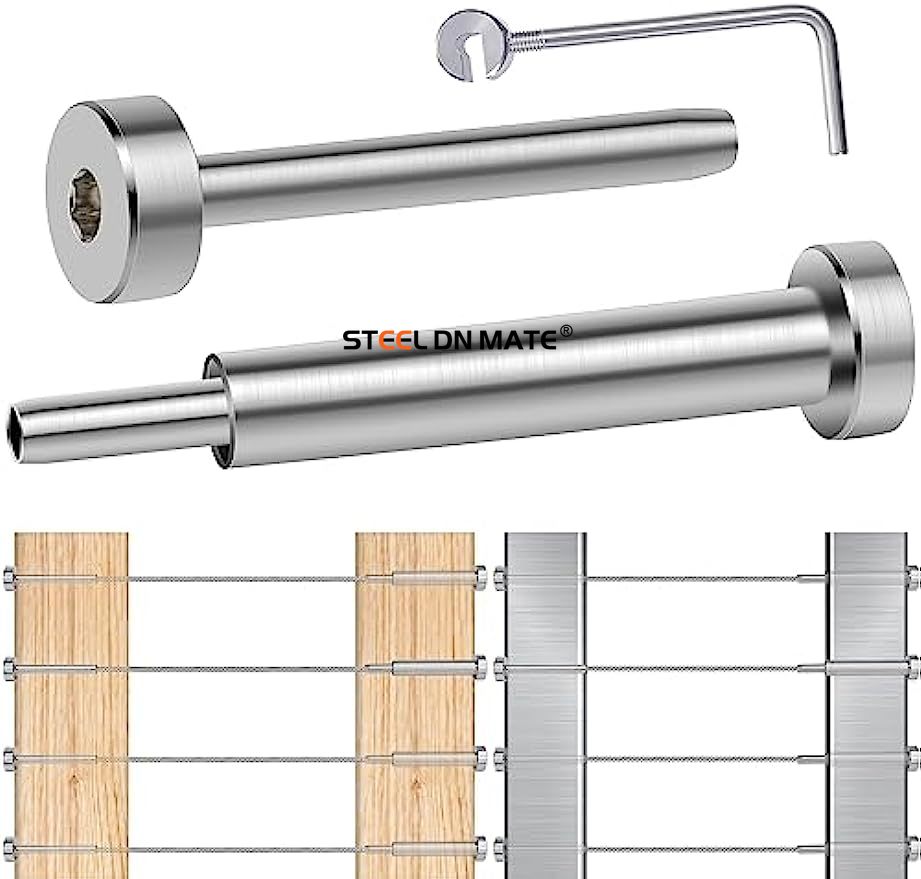

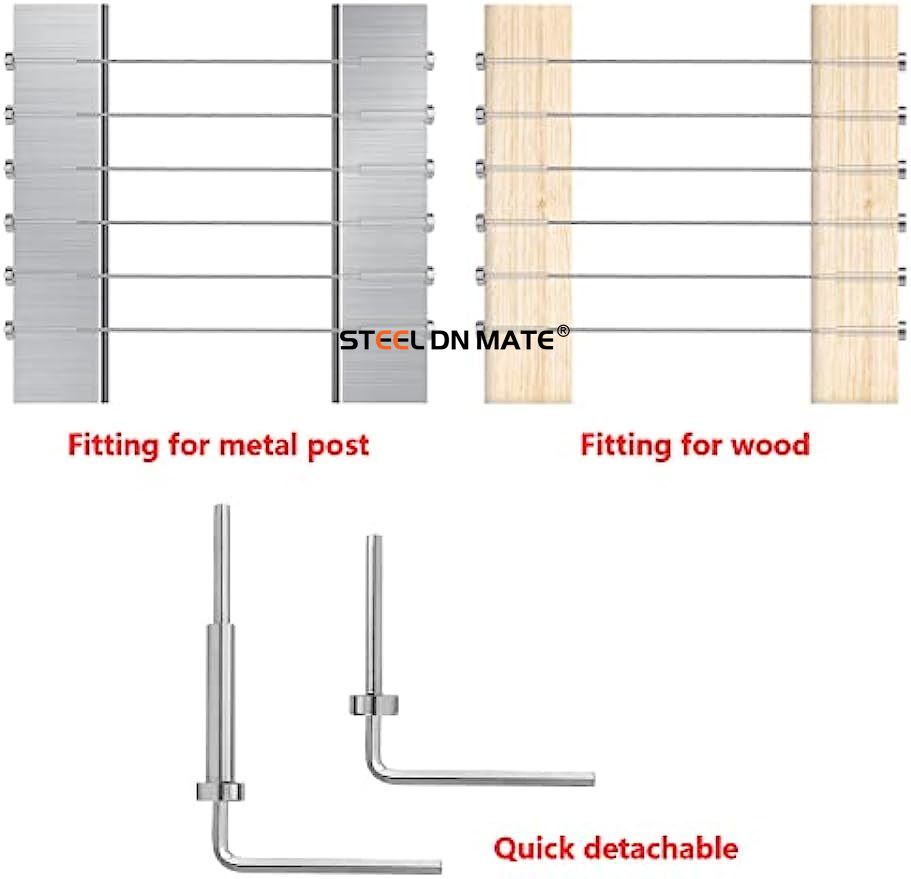

• 1. Wide application: Work for WOODEN and METAL posts with 2×2"， 4×4", both level or angle installations(worth with the 30° washer);
• 2. Invisible Clean Look, High quality installation, the cable railing hardware will be hidden in the wooden and metal column railings;
• 3. Made of T316 Stainless Steel material,, strong resistance to rust, corrosion and extreme weather, perfect for indoor or outdoor, coastal areas.

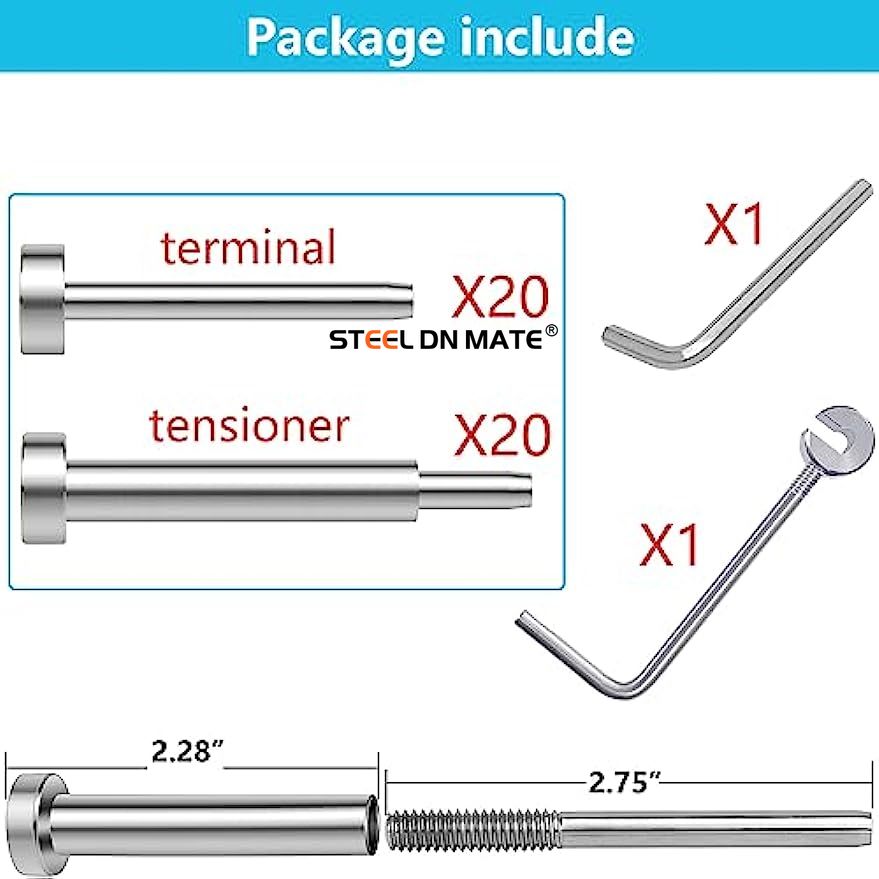

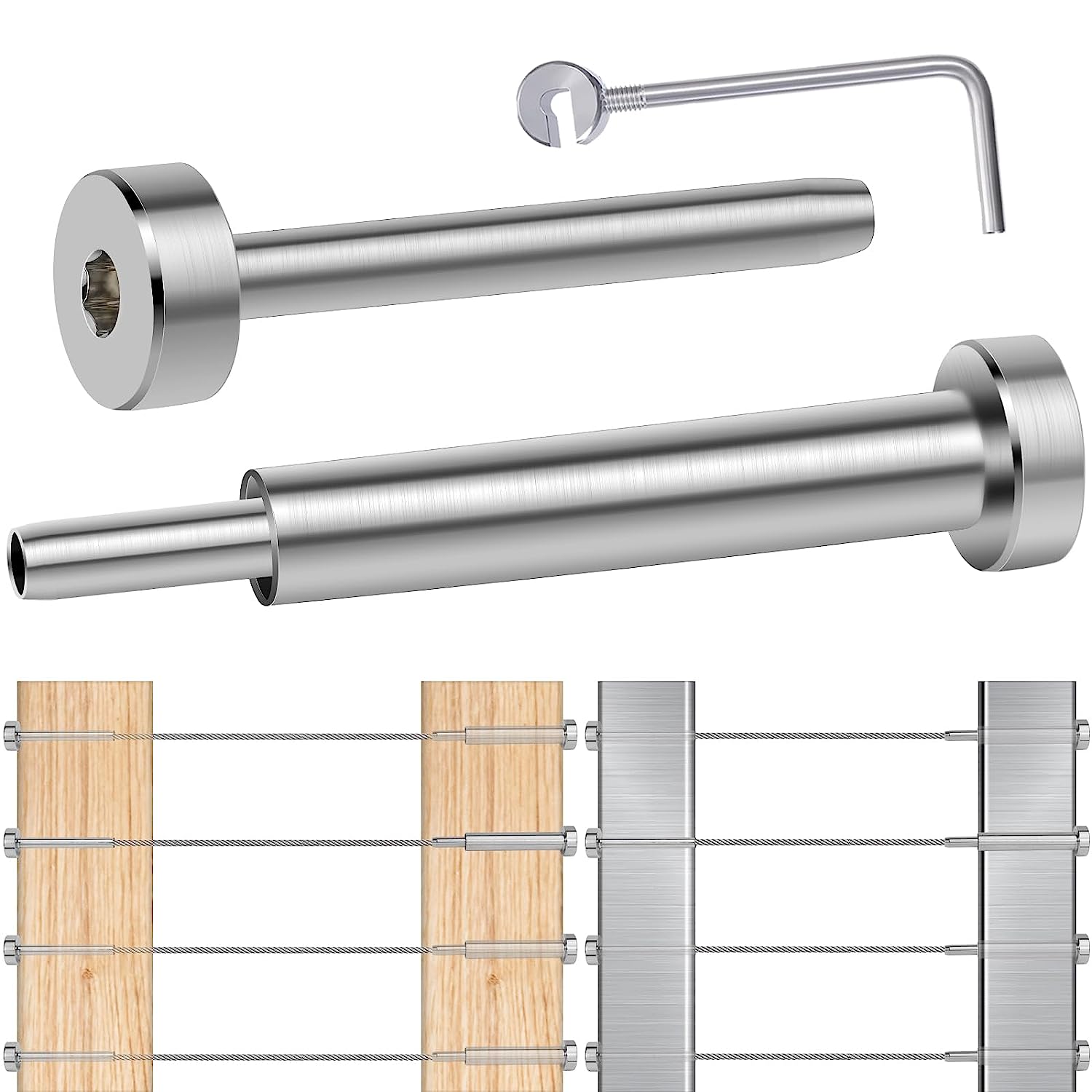

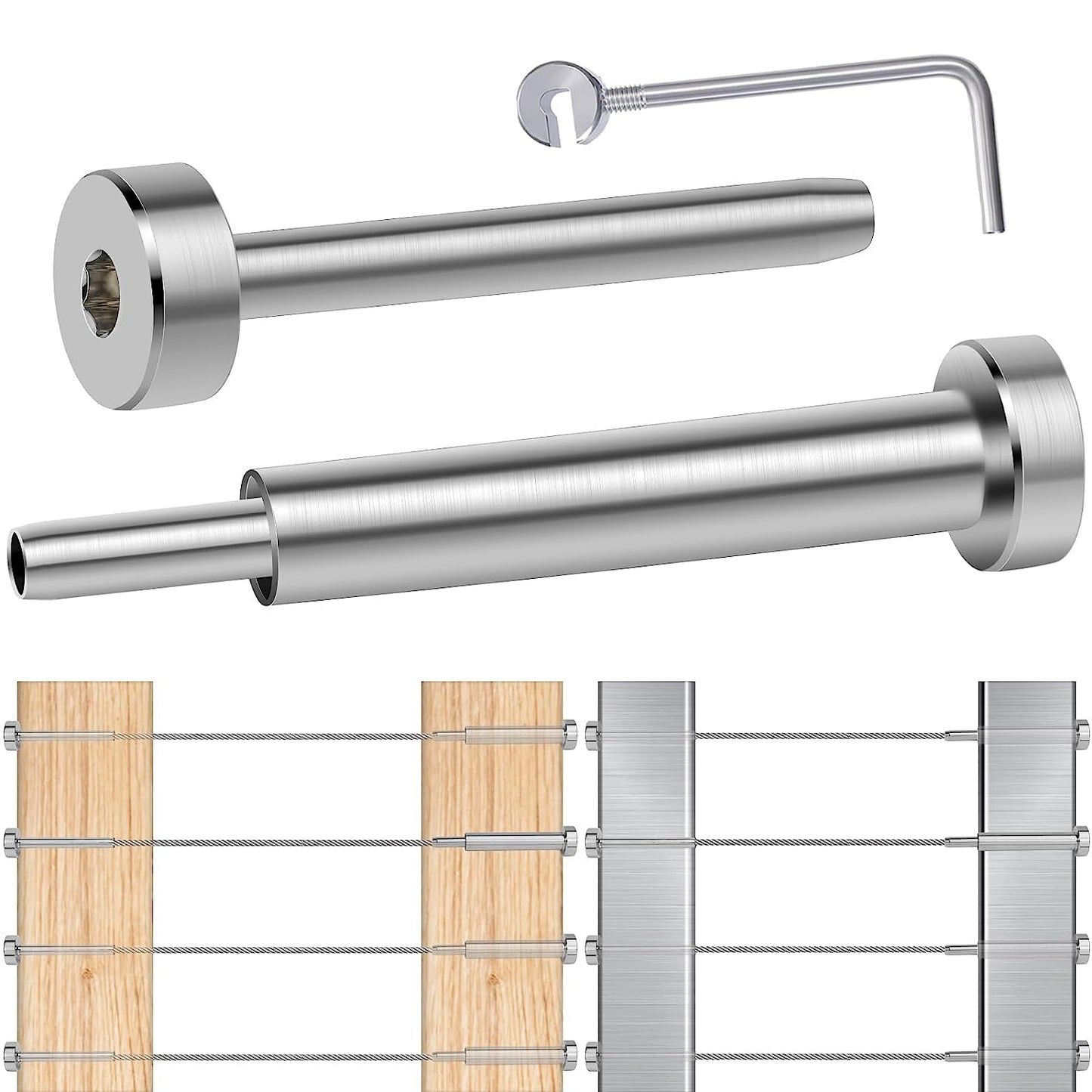

PACKAGE LIST:

• Terminal × 20
• Tensioner × 20
• Tool × 1
• Allen wrench × 1

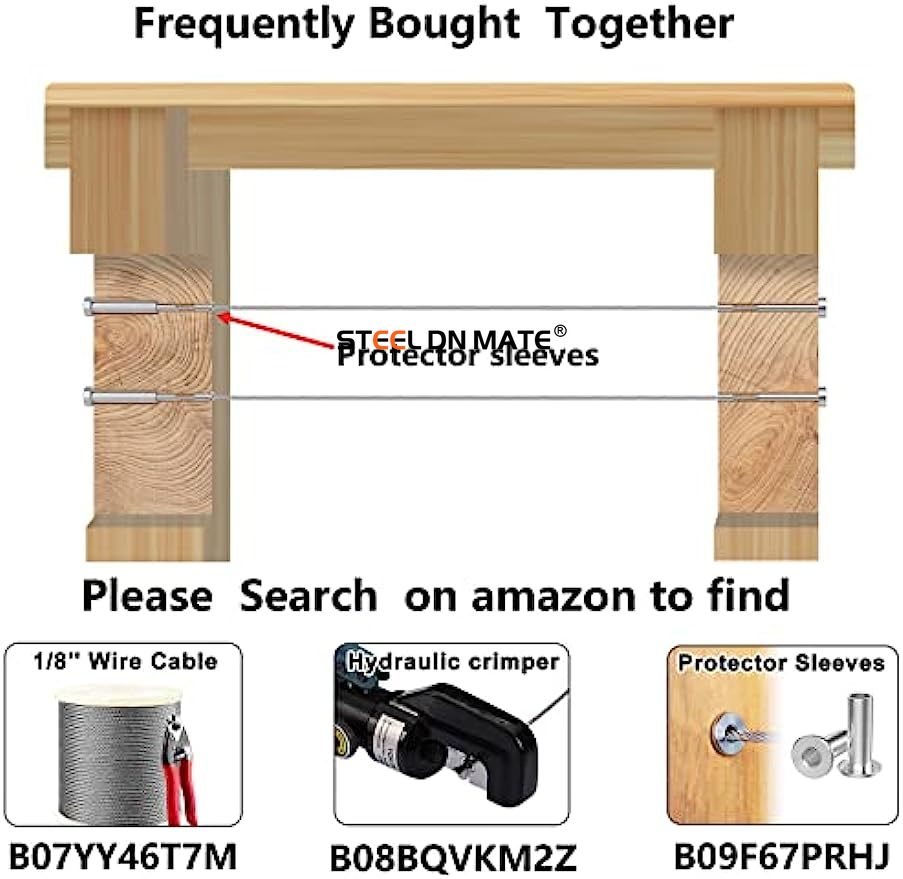

Materials needed to build your own project( not included), Steel DN Mate offer one stop shopping, you can search the following, or scroll down this page to see the same items from our brand.

General installation steps

1. Divide the height of post into equal length for each run, run spacing 3" each, mark with a pencil.

2. Drill holes.

-- In post A, drill holes to install the terminal (short one).

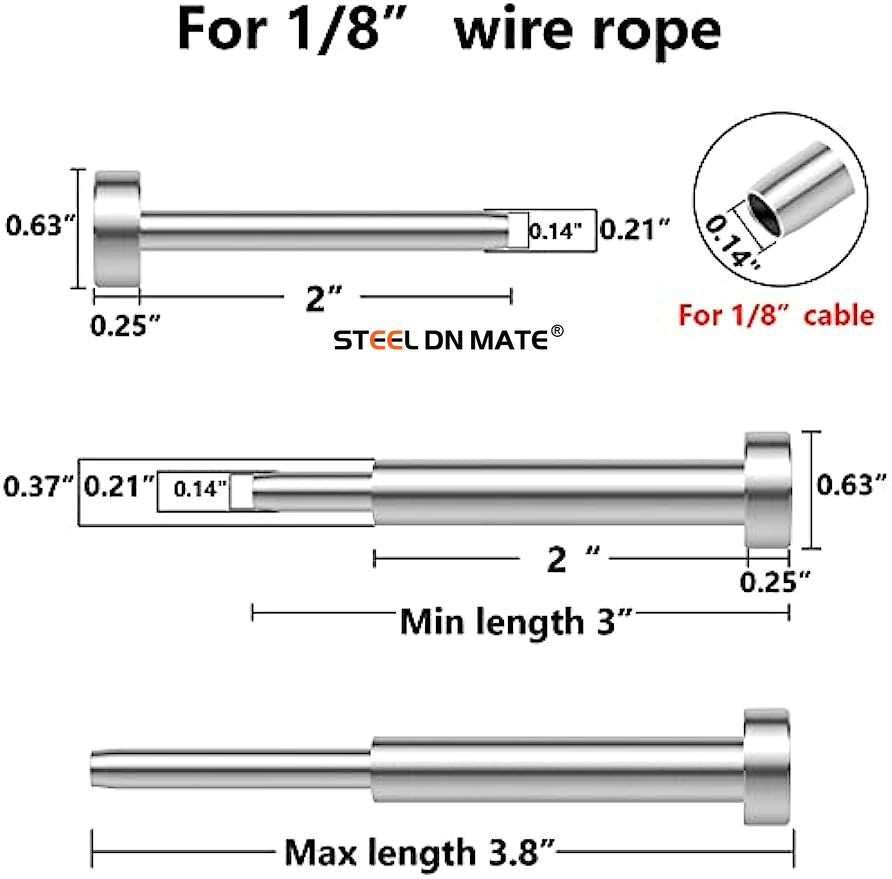

Drill through post with a drill bit, diameter 1/4" (6.5mm).

-- In post B, drill holes to install the tensioner ( the long one).

For post size 2×2", drill through with 25/64" (10mm) drill bit. If the diameter of the wooden post is between 2 and 4", first drill through the post using a 1/4" (6.5mm) drill bit for the swage thread fit. Then, from the opposite side, drill a 2" deep hole using a 25/64 inch (10mm) drill bit. You can make a mark at 2" on the the 25/64" drill bit, which is the length of the tensioner's large pipe.

3. Measure and cut steel wire cables. The length of the wire rope should be 2-3/8 inches shorter than the distance between the posts, measured from the outside.

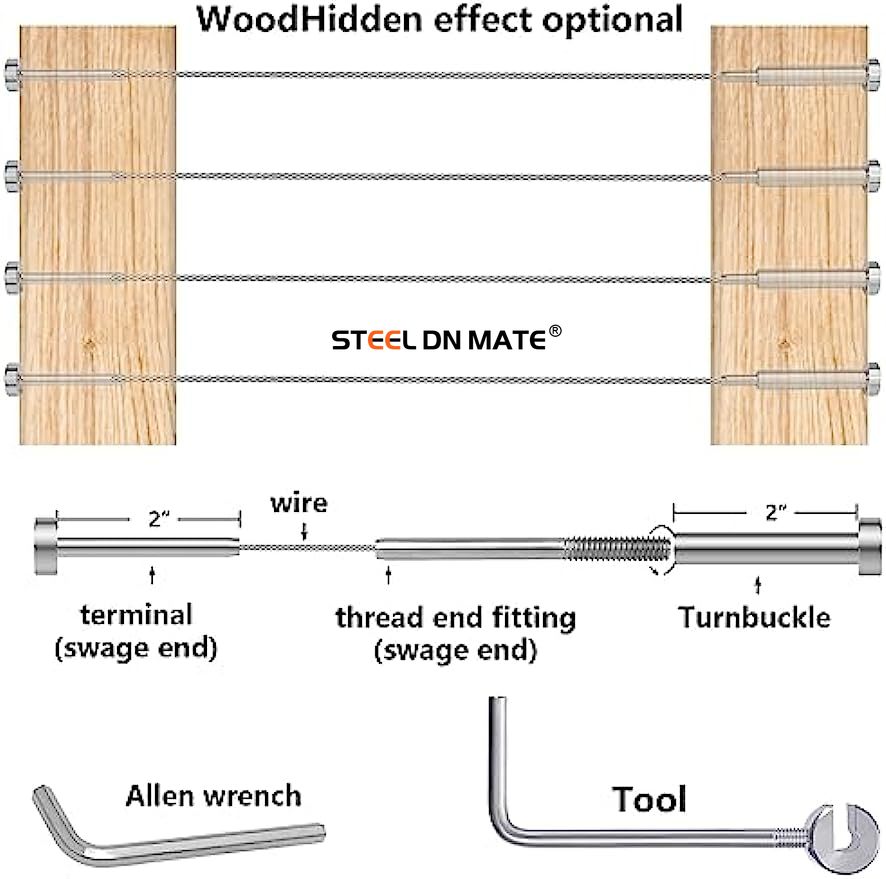

4. Crimp the terminal with cable, using hydraulic crimper DC01. Normally, each screw: 2 crimping positions, 3 to 4 times swaging per position, and then insert the terminal through the post A. The same way to swage the cable with the thread fitting in Post B. Insert the threaded end into the post, connect the two parts inside the wooden post. Gripping the threaded end with one hand, tighten with our allen wrench in the other hand.

Finally, secure the cable with our tool, and tighten the tensioner with the allen wrench.

Congratulations! It is done!

Note that for a 4x4 inch post, you can use protectors on the inner side for a better appearance and added protection. It is also acceptable to use it without sleeves.
