Steel DN Mate 20 Pack 3/16" Swage Lag Screws, T316 Stainless Steel Left & Right Handed Thread, 3/16" Cable Railing Kit for Wood Post, Deck Railing/Stair Railing, DIY Baluster Cable Railing Hardware

Steel DN Mate 20 Pack 3/16" Swage Lag Screws, T316 Stainless Steel Left & Right Handed Thread, 3/16" Cable Railing Kit for Wood Post, Deck Railing/Stair Railing, DIY Baluster Cable Railing Hardware

Regular price $78.99 USD
Regular price $89.98 USD Sale price $78.99 USD
Sale Sold out
Shipping calculated at checkout.
Item Package Quantity
New design of deck cable railing kit, clean and elegant. This cable railing hardware is made of stainless steel 316 material, anti-rust, waterproof, and corrosion-resistant, marine Grade, good for indoor or outdoor usage. It is suitable to DIY your stair railings, porch railing, terrace railings, and deck railings, both horizontal /vertical and angle applications. With our specially made wrench, installation becomes much easier.
This stainless steel cable railing kit fits 3/16" cable railing system. The swage lag screws are designed for wood posts. It will rotate the wire rope in the same direction, which resolves the problem of twisting or damaging the attached wire. This design can make the wire railing kit for decks last longer. And this cable railing won’t be easily unfixed or destroyed.
Length of cable should be 1-1/2" shorter than wood surface distance(as shown in pic.4); if you want to build a high-quality cable wire railing, standard 3/16" (OD) cable which was made of T316-stainless steel is recommended. Maximum distance between the 2 end posts should be within 16Ft, post space less than 4ft, cable spacing less than 4inch.
The lag screws could be drilled into wood to adjust the tightness without an extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. A hydraulic crimper (Search “B08BQVKM2Z” or Model number “DC01” on Amazon) is needed to connect the cable to lag screws.
We have perfect before and after-sale service. Steel DN Mate offers a 10 years warranty / Free Service. --If you are a new beginner or not sure how to build cable deck railing system, please contact us by clicking on "by Steel DN Mate" below "add to cart." Let's help you, then you can follow the shopping list to buy all the items in 1 minute.

Product Description

2
2

Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate

Steel DN Mate

Offers different installation cable railing tools:

Hydraulic crimper: B08BQVKM2Z, or Model number DC01

This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....

5
5



1
1

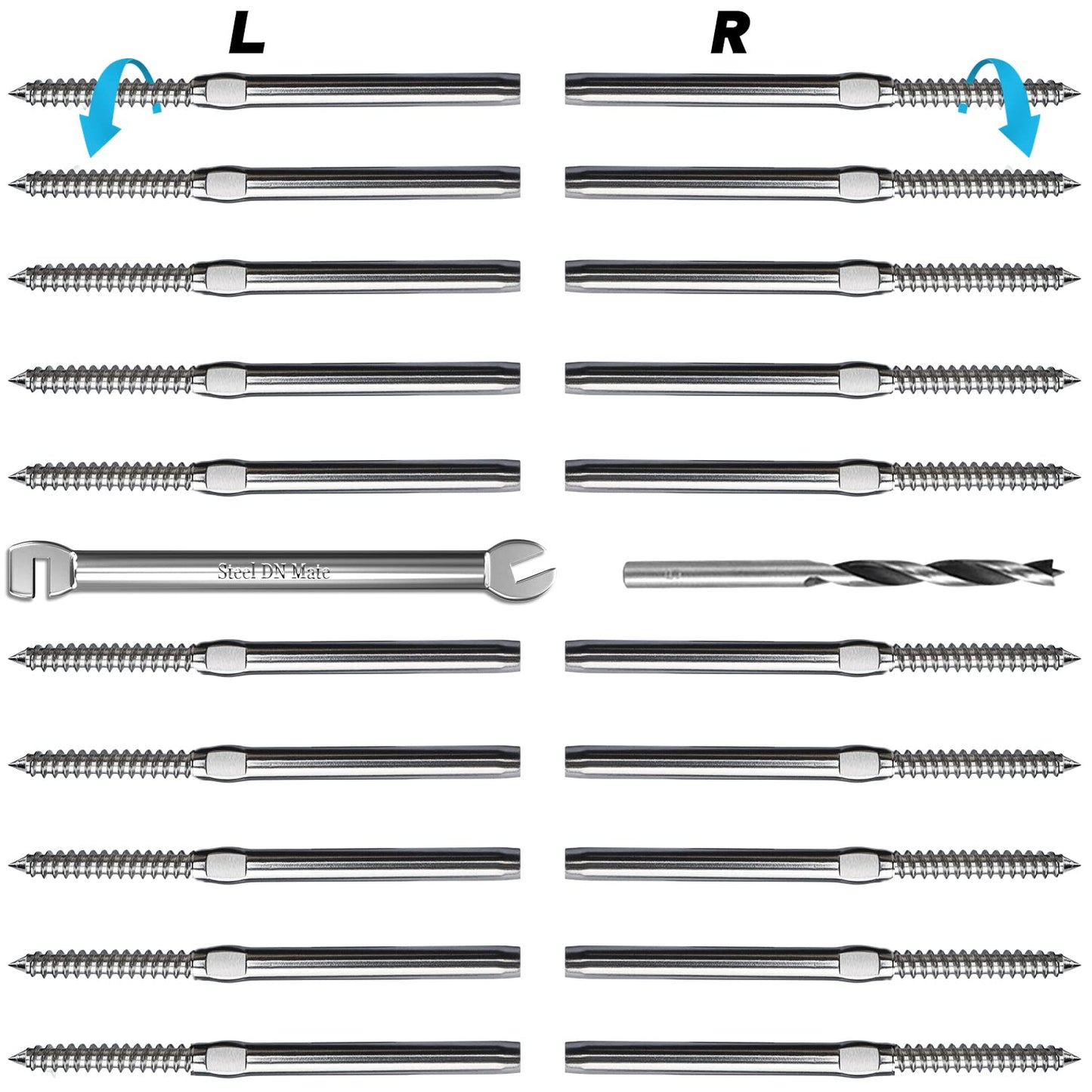

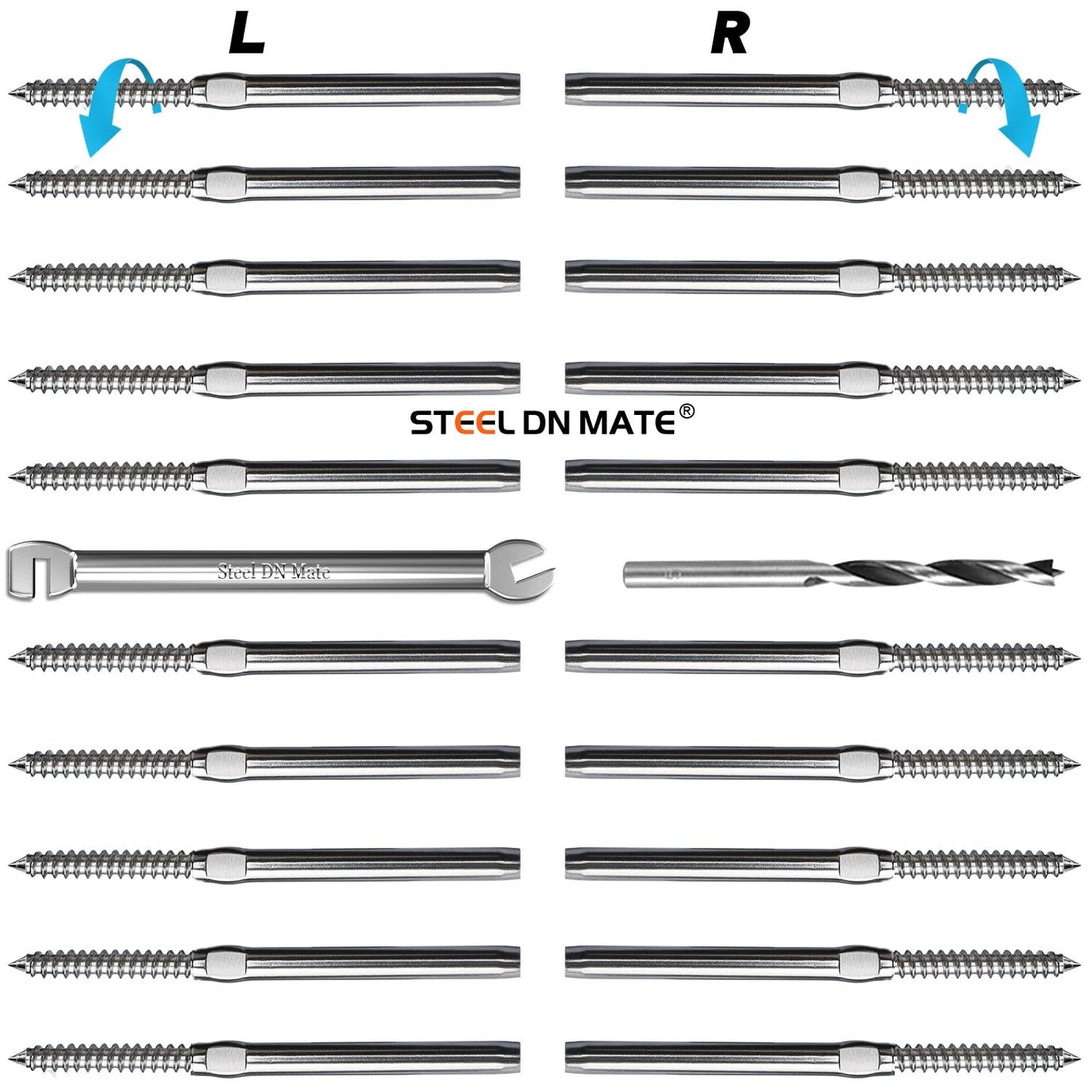

Package includes:



  • Left handed thread lag screw:10 Pcs
  • Right handed thread lag screw:10 Pcs
  • OD drill bit:1 Piece
  • Steel DN Mate Wrench: 1 Piece



  • 10 Years warrant-y

Steel DN Mate---BEST Quality Handed Thread Swage Lag Screws

Left & Right Thread Swage Lag Screws

T316 Stainless Steel material, anti-rust ,water and corrosion,marine Grade, good for indoor or outdoor usage.

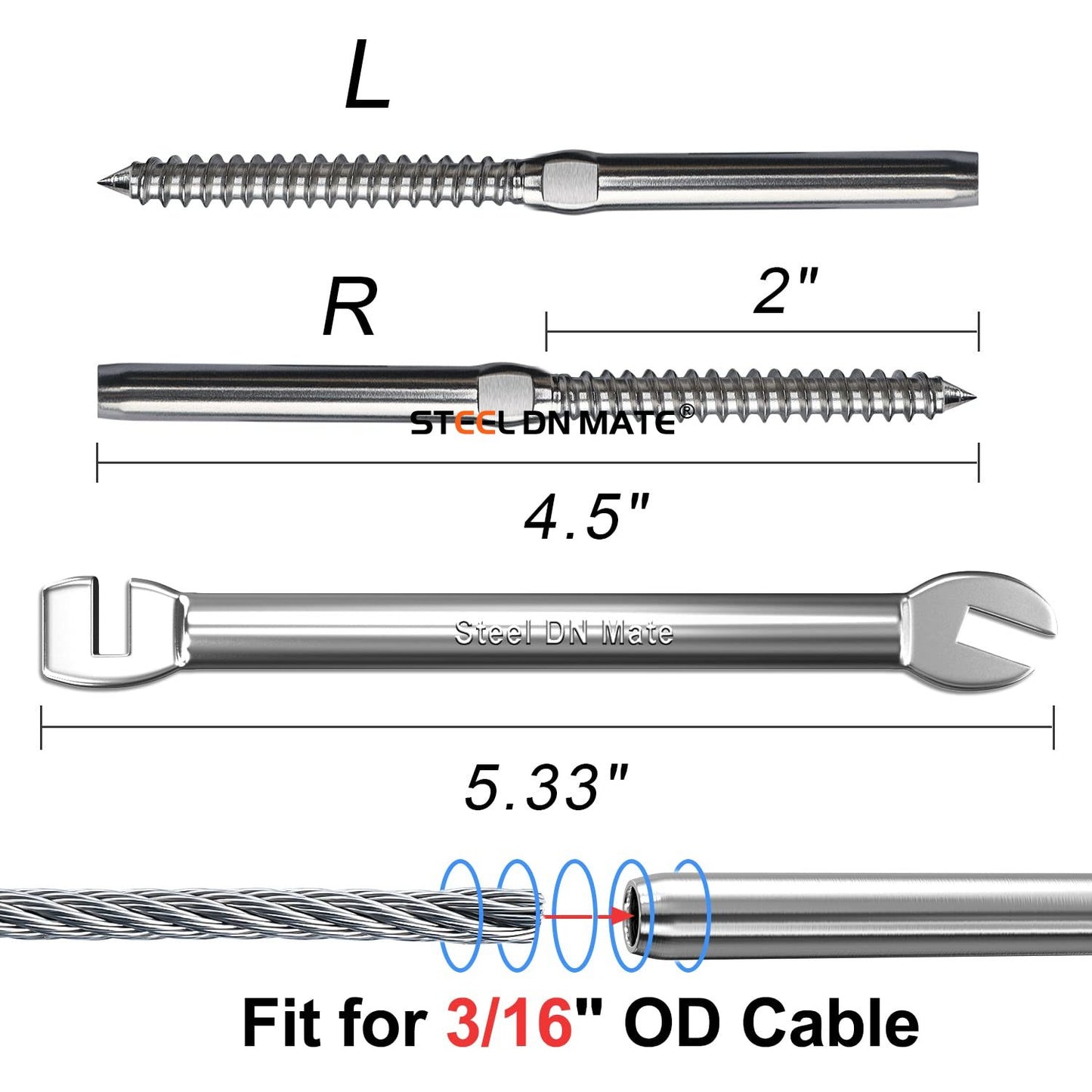

This deck railing hardware fit 3/16" OD cable of railing system.

The thread screws are designed for timber/wood post.

  • Stable and Durable
  • Clear look
  • Easy to install
  • Marine Grade waterproof, rust-free, anti-corrosion


INSTALLATION TIPS



1
1





2
2





3/16
3/16

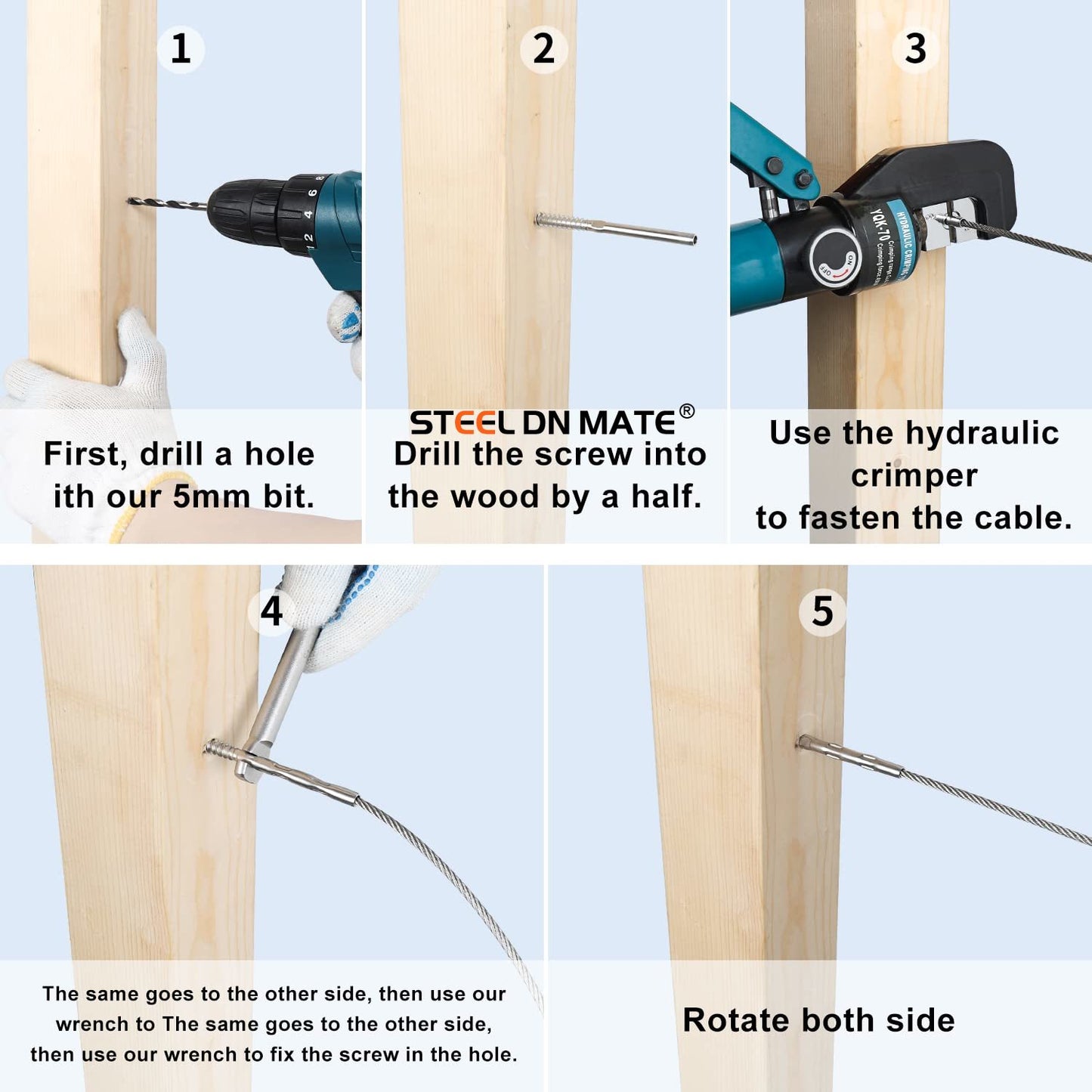

Step 1

Drill half threads of the Left & right lag screws into the pilot holes in the posts which have been drilled; then swage the cable to the screws. Note, leave half threads outside of the post.

Step 2

Turn the left lag screws thread in to the left post; Steel DN Mate develop a specially Wrench to make this job very easy and save strength.

Step 3

Turn the right lag screws into the right post in the same direction at the pretty the same time. This way is to avoid cable twisted.



FEASTURES



4
4





rust free
rust free





6
6



Easy installation-Deck Railing Kit

It is very easy and simple with our tools and user guide. One man could DIY the project.

Marine Grade-Cable Railing Hardware

Steel DN Mate deck Railing Kit is made of T316 Marine Grade, it is rust-free, weather-proof.

Elegant Look-Deck Cable Railing System

Clear look, it won't block your view, the most inexpensive cable railing.



Cable Raililng Hardware for wood, posts, level or vertical railings, stair railings-- All in One Stop Shopping station by Steel DN Mate

7
7

10对
1
1
100
液压钳
drill jig
  20 Packs 3/16" Swage Lag Screws 60 Packs 3/16" Swage Lag Screws 60 Packs 1/8" Swage Lag Screws 100 Packs 1/8" Black Swage Lag Screws Hydraulic Crimper 45 30 90 Degree Drill Guide
Material T316 T316 T316 T316 Metal Metal
Rust-proof
Fit for 3/16" 3/16" 1/8" 1/8" All All
Outdoor use
Indoor use



Product Description

2
2

Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate

Steel DN Mate

Offers different installation cable railing tools:

Hydraulic crimper: B08BQVKM2Z, or Model number DC01

This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....

5
5



1
1
Package includes:



  • Left handed thread lag screw:10 Pcs
  • Right handed thread lag screw:10 Pcs
  • OD drill bit:1 Piece
  • Steel DN Mate Wrench: 1 Piece



  • 10 Years warrant-y

Steel DN Mate---BEST Quality Handed Thread Swage Lag Screws

Left & Right Thread Swage Lag Screws

T316 Stainless Steel material, anti-rust ,water and corrosion,marine Grade, good for indoor or outdoor usage.

This deck railing hardware fit 3/16" OD cable of railing system.

The thread screws are designed for timber/wood post.

  • Stable and Durable
  • Clear look
  • Easy to install
  • Marine Grade waterproof, rust-free, anti-corrosion


INSTALLATION TIPS



1
1





2
2





3/16
3/16



Step 1

Drill half threads of the Left & right lag screws into the pilot holes in the posts which have been drilled; then swage the cable to the screws. Note, leave half threads outside of the post.

Step 2

Turn the left lag screws thread in to the left post; Steel DN Mate develop a specially Wrench to make this job very easy and save strength.

Step 3

Turn the right lag screws into the right post in the same direction at the pretty the same time. This way is to avoid cable twisted.



FEASTURES



4
4





rust free
rust free





6
6



Easy installation-Deck Railing Kit

It is very easy and simple with our tools and user guide. One man could DIY the project.

Marine Grade-Cable Railing Hardware

Steel DN Mate deck Railing Kit is made of T316 Marine Grade, it is rust-free, weather-proof.

Elegant Look-Deck Cable Railing System

Clear look, it won't block your view, the most inexpensive cable railing.



Cable Raililng Hardware for wood, posts, level or vertical railings, stair railings-- All in One Stop Shopping station by Steel DN Mate

7
7

10对
1
1
100
液压钳
drill jig
  20 Packs 3/16" Swage Lag Screws 60 Packs 3/16" Swage Lag Screws 60 Packs 1/8" Swage Lag Screws 100 Packs 1/8" Black Swage Lag Screws Hydraulic Crimper 45 30 90 Degree Drill Guide
Material T316 T316 T316 T316 Metal Metal
Rust-proof
Fit for 3/16" 3/16" 1/8" 1/8" All All
Outdoor use
Indoor use
