Steel DN Mate 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig for Angled and Straight Hole, Portable Deck Cable Railing Lag Screw Drilling Template Block For Horizontal Cable Wood Post Orange
Steel DN Mate 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig for Angled and Straight Hole, Portable Deck Cable Railing Lag Screw Drilling Template Block For Horizontal Cable Wood Post Orange
Couldn't load pickup availability

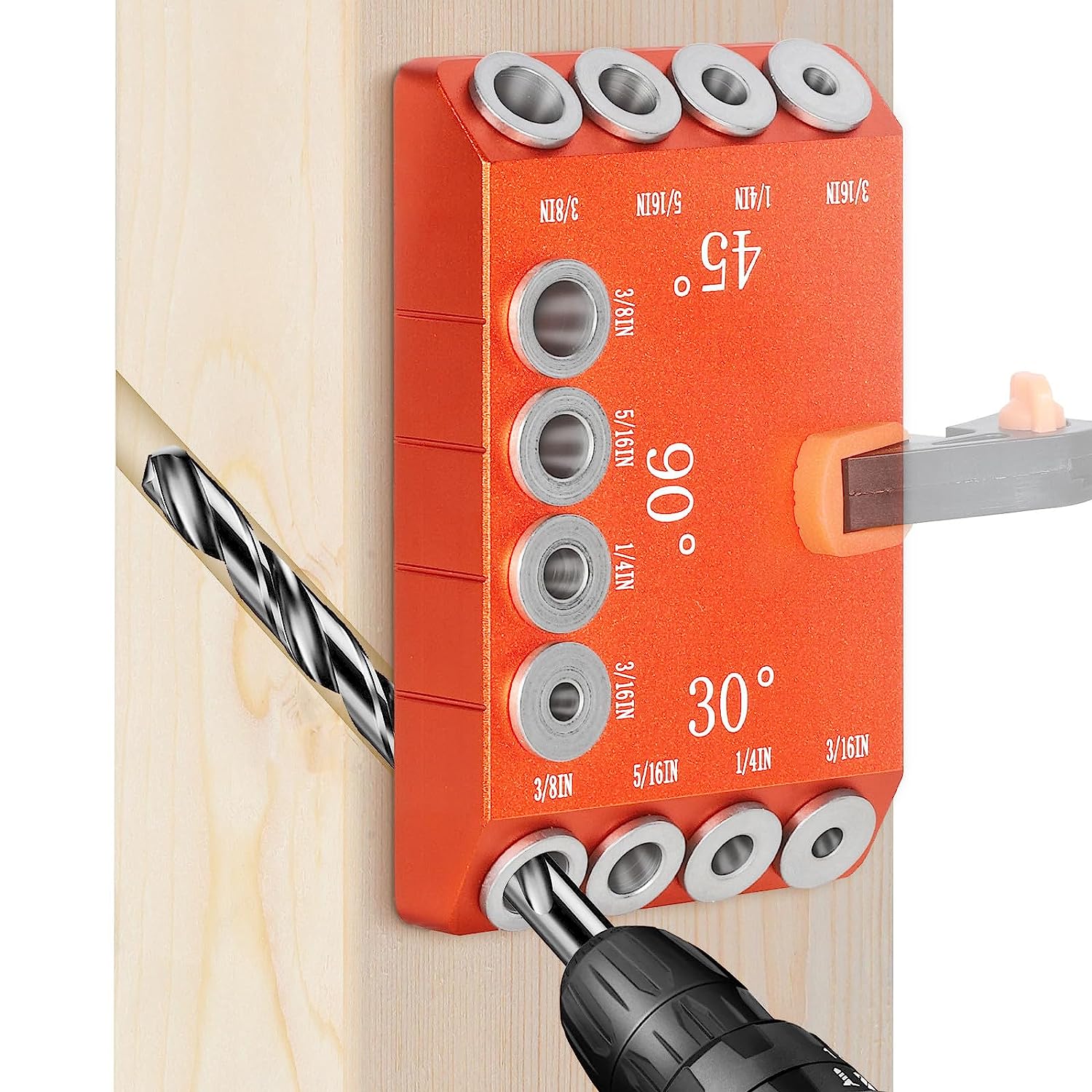

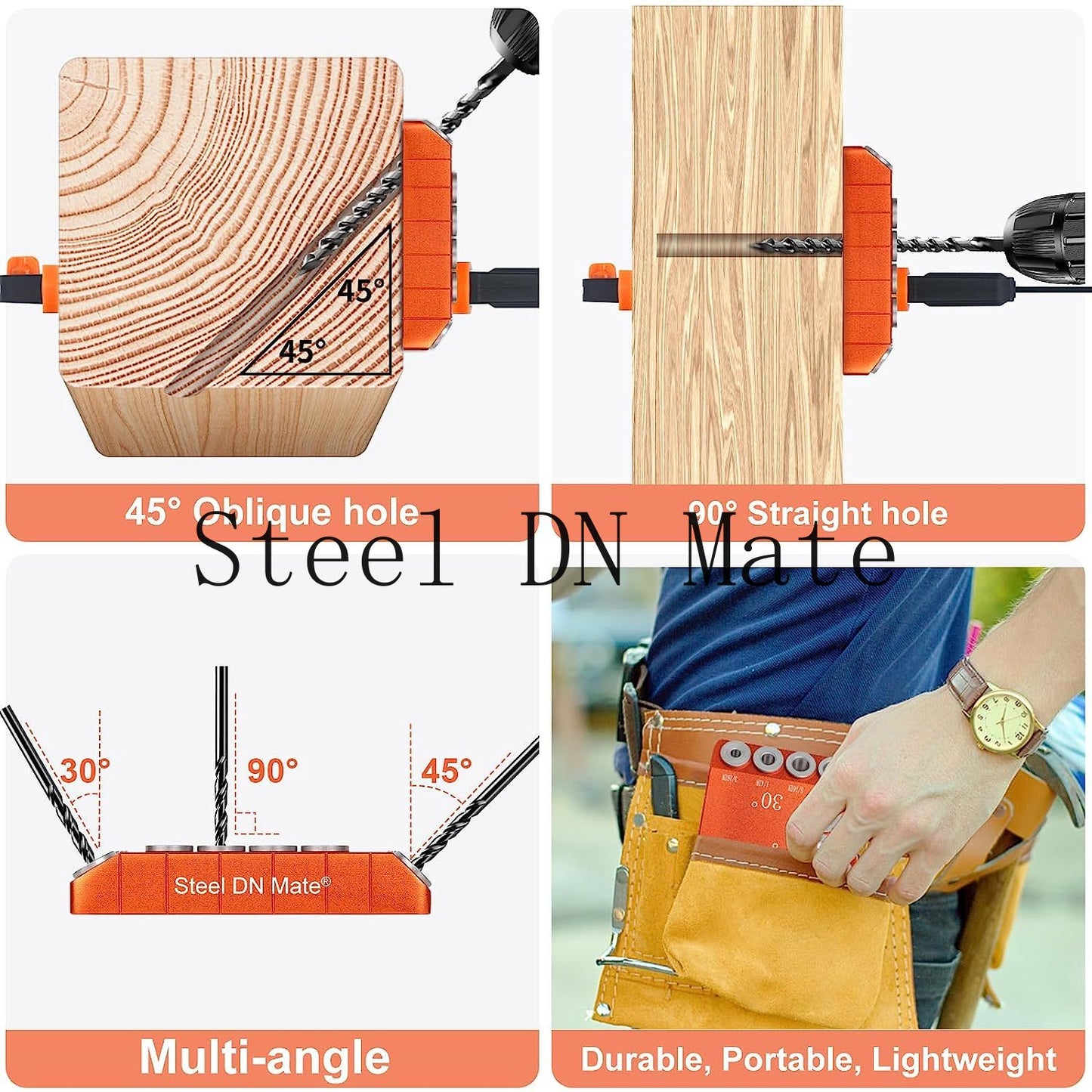

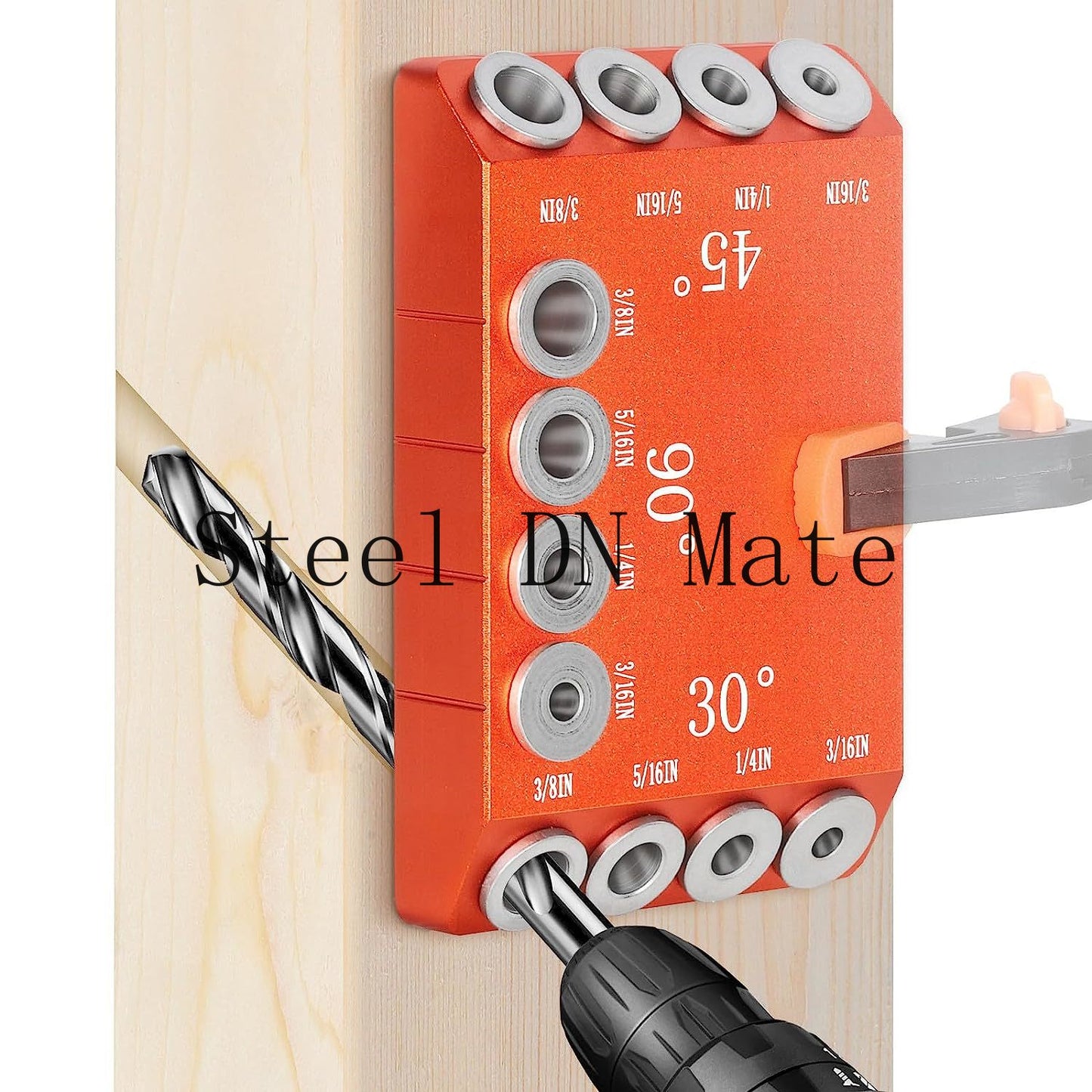

Accurate 3 drilling angles: There are 3 different angles in this portable metal drill guide: 30 degree, 45 degree and 90 degree. Building a stair railing becomes much easier and more, convenient with the 30° & 45° angle holes and 90° for horizontal and vertical straight holes. A new beginner can quickly drill accurate 30/45/90 degree angle holes with a electric hand drill in the post with this tool, time-saving and perfect finish.

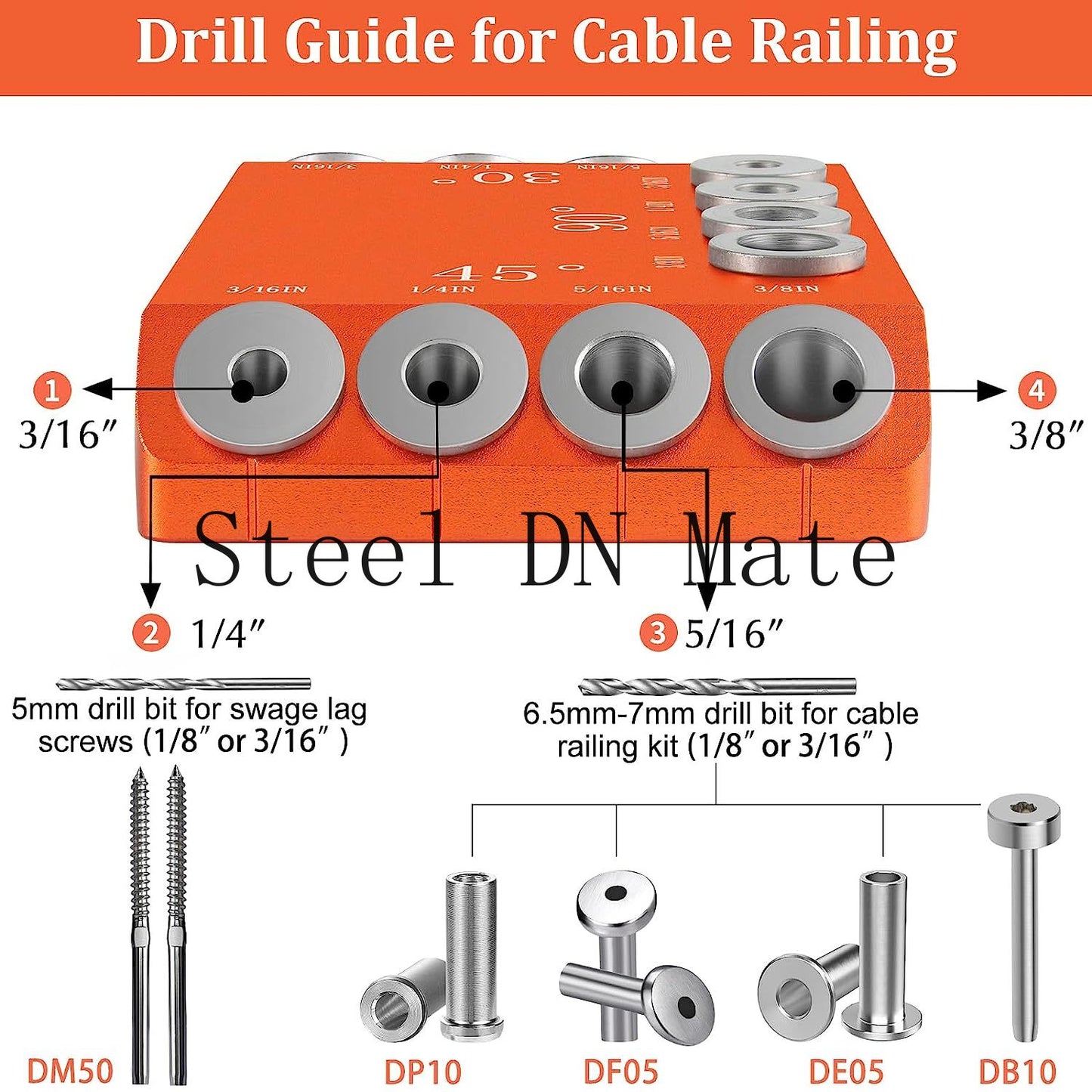

4 different sizes of holes: This cable railing drill template guide jig offers 4 different size holes, 3/16” (4.8mm), 1/4”(6.35 mm), 5/16”(7.93mm), 3/8”(9.52mm), which are compatible with most cable railing hardware. The hole drilled by 1/4” fits most 1/8" cable railings lag screws.
Application: This drill guides for portable drills is widely use to install of wooden, and metal deck railing posts for cable railings and DIY woodworking/Handrail projects. It can work with 6” woodworking F clamp and C clamp for no shaking and safer drilling.
This drill guide for straight holes is a part of our cable railing system, we have everything needed for your cable railing project. Please scroll down to see more cable railing kits made by Steel DN Mate.
Product Description
Why choose the Steel DN Mate drill hole guide?
1.Durable and tough body: Made of Aluminum 6061, which is significantly more durable than normal Aluminum alloys, high hardness, strength, and excellent resistance to wear and corrosion.
2. Hardened hole sleeves for accuracy: The Chrome-plated steel sleeves undergo high-temperature quenching, increasing hardness. Coated with electroplating, they effectively prevent wear from drilling. This ensures drilling accuracy without cracking or expanding. Just confidently drill!
Reliable tool for railing!
Four Guide Hole Size
- 3/16" (4.8mm)
- 1/4" (6.4mm)
- 5/16" (8mm)
- 3/8" (9.6mm)
- Aluminum alloy
- Three different drilling angles
- Four sizes of guide holes

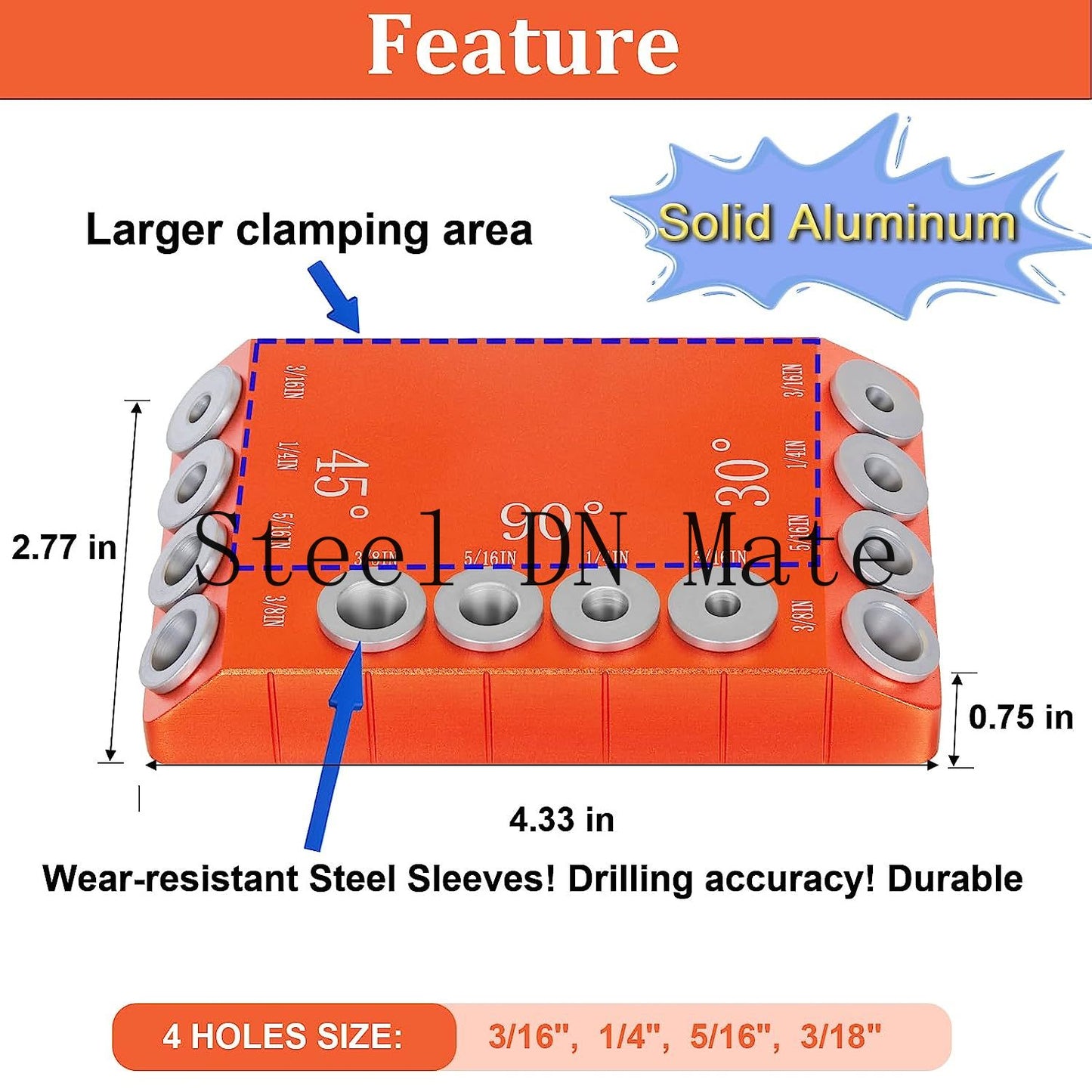

Specification
- Material: Heavy Duty Steel, Aluminum Alloy
- Color: Anodized Orange Surfac
- Dimensions: 2.8 × 4.2 × 1 in
- Drilling Angle: 30°, 45°, 90°
- What you get: 1 × Drill Guide
- Application: Suitable for installing various cable railing systems

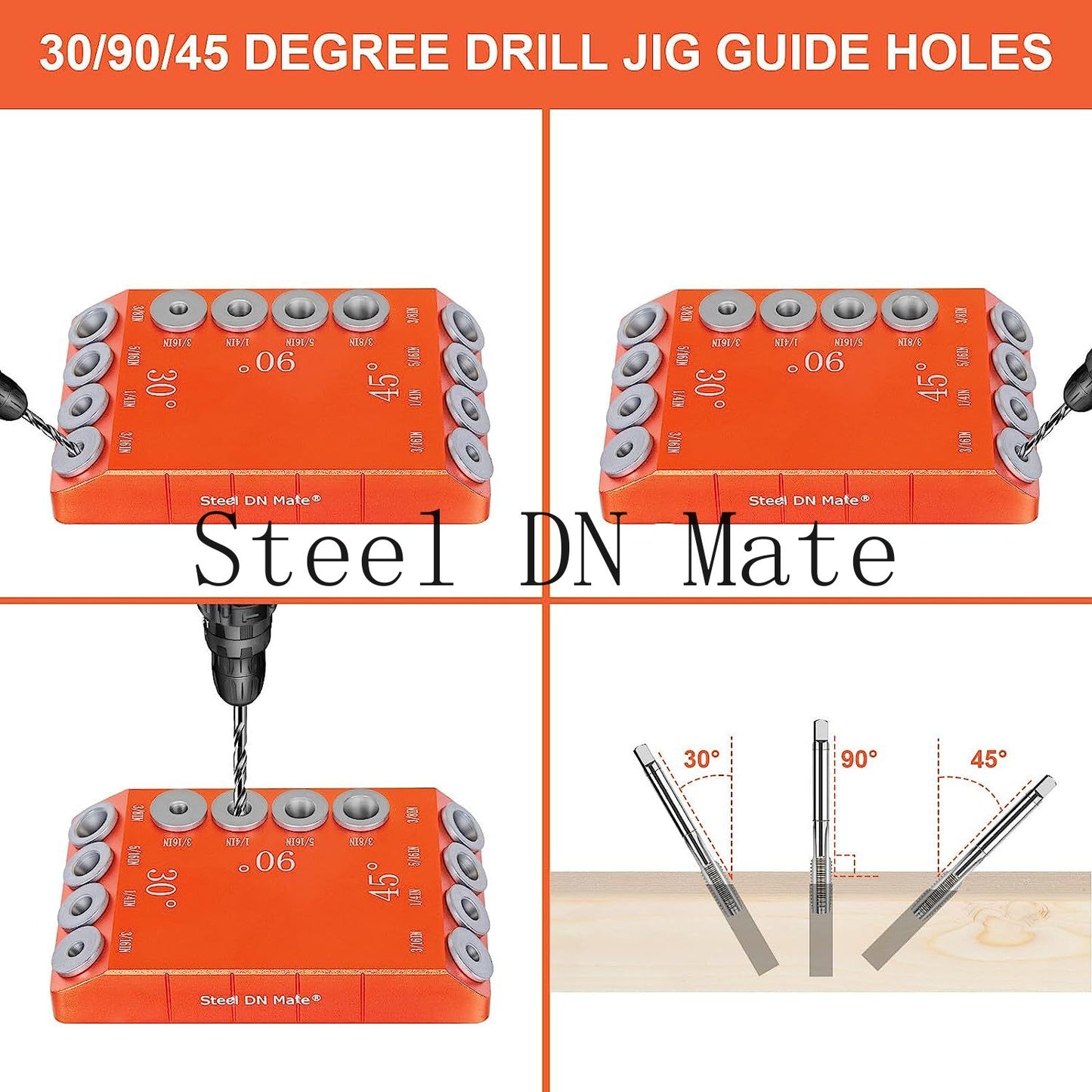

Accurate 3 Drilling Angles
|
|
|
|
|---|---|---|
30 Degree Drilling HolesSuitable for installing 30° stair cable railing system. It can be used for steel dn mate DT03 (30° Angle Protector Sleeves), steel dn mate DX30 (Angle Beveled Washer) and other cable railing kit. |
90 Degree Drilling holesSuitable for installing level deck railing system. It can be used with steel dn mate DE05, DP10 (Protector Sleeves), steel dn mate DM50 (Swage Lag Screws) and other cable railing kit. |
45 Degree Drilling holesSuitable for installing 45° stair railing system. It can be used for steel dn mate DF05 (45° Angle Protector Sleeves), steel dn mate DH10 (Swage Turnbuckle Hardware) and other cable railing kit. |

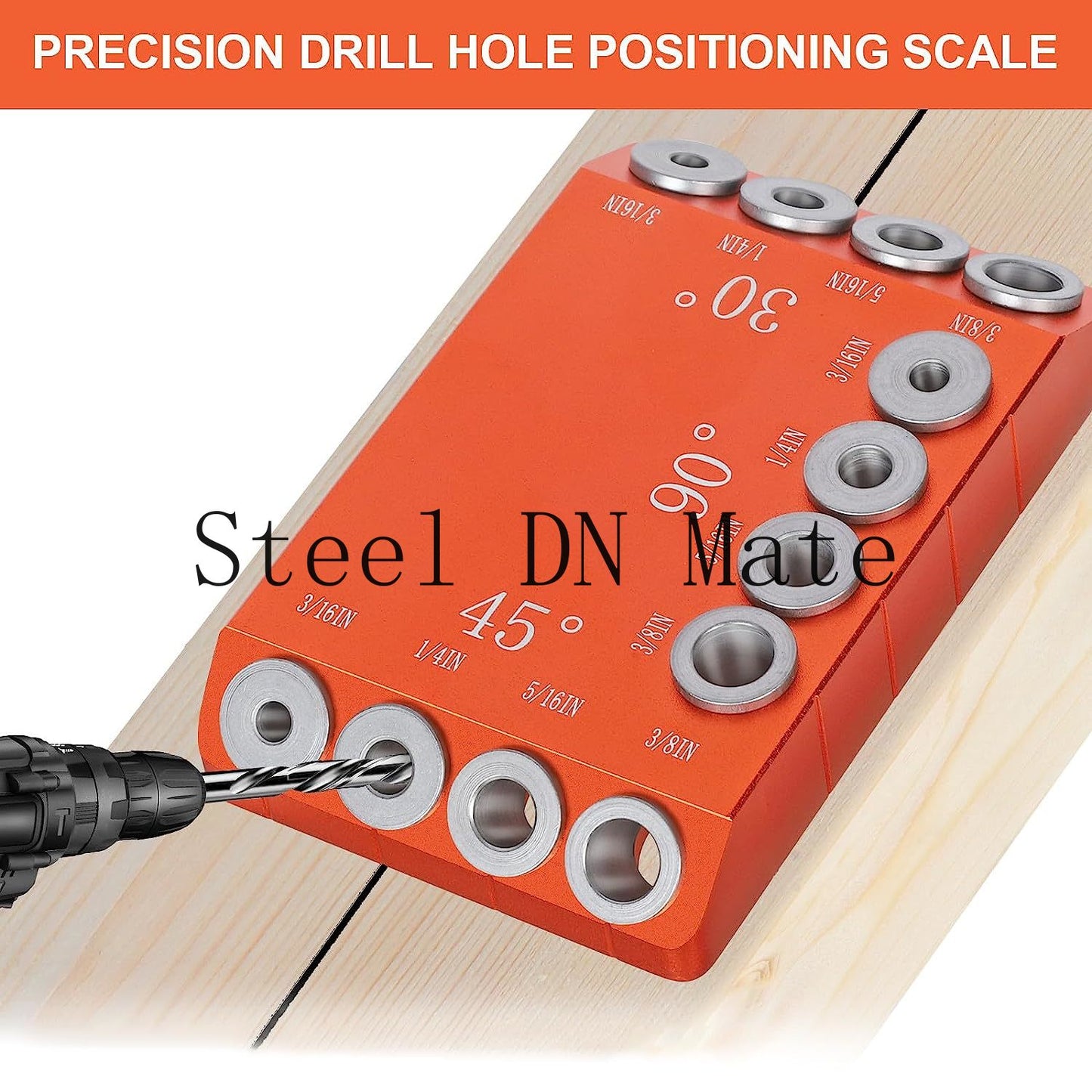

How to install:
- Measure the scale position and mark it
- Line up the marks with the right hole in the jig and fix with woodworking F clamp or C clamp.
- Choose the right drill and start drilling.
It is nice kit that does the job it sets out to do.
Accurate and easy to operate
This angle jig is made of premium quality aluminum alloy, with corrosion resistance and durability. It is lightweight, small, easy to use and carry. We enchase the holes with steel protective sleeves, so no worry about it may crack during drilling, causing the guide holes to get broken or inaccurate.
It can be used repeatedly, which solves the trouble of finding the product repeatedly for you.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Angle JIG guide | Swage lag screws | Hydraulic crimping tool | Angle beveled protector sleeves | Straight protector sleeves | 1/8" Stainless steel cable | |
| Material | Metal | T316 Stainless Steel | Steel | T316 Stainless Steel | T316 Stainless Steel | T316 Stainless Steel |
| Size | 1/8" | 1/8" | All | 1/8" | 1/8" | 1/8" |
| Rust-proof |
