Steel DN Mate 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig for Angled and Straight Hole, Portable Deck Cable Railing Lag Screw Drilling Template Block for Horizontal Cable Wood Post Silver
Steel DN Mate 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig for Angled and Straight Hole, Portable Deck Cable Railing Lag Screw Drilling Template Block for Horizontal Cable Wood Post Silver
Couldn't load pickup availability
To ensure precise drilling, we embed harden chrome-plated steel sleeves into this drill jig, using advantage tech, guarantee holes without wearing. Just drill with confidence, as the sleeves will not crack or expand, keep drilling accuracy.

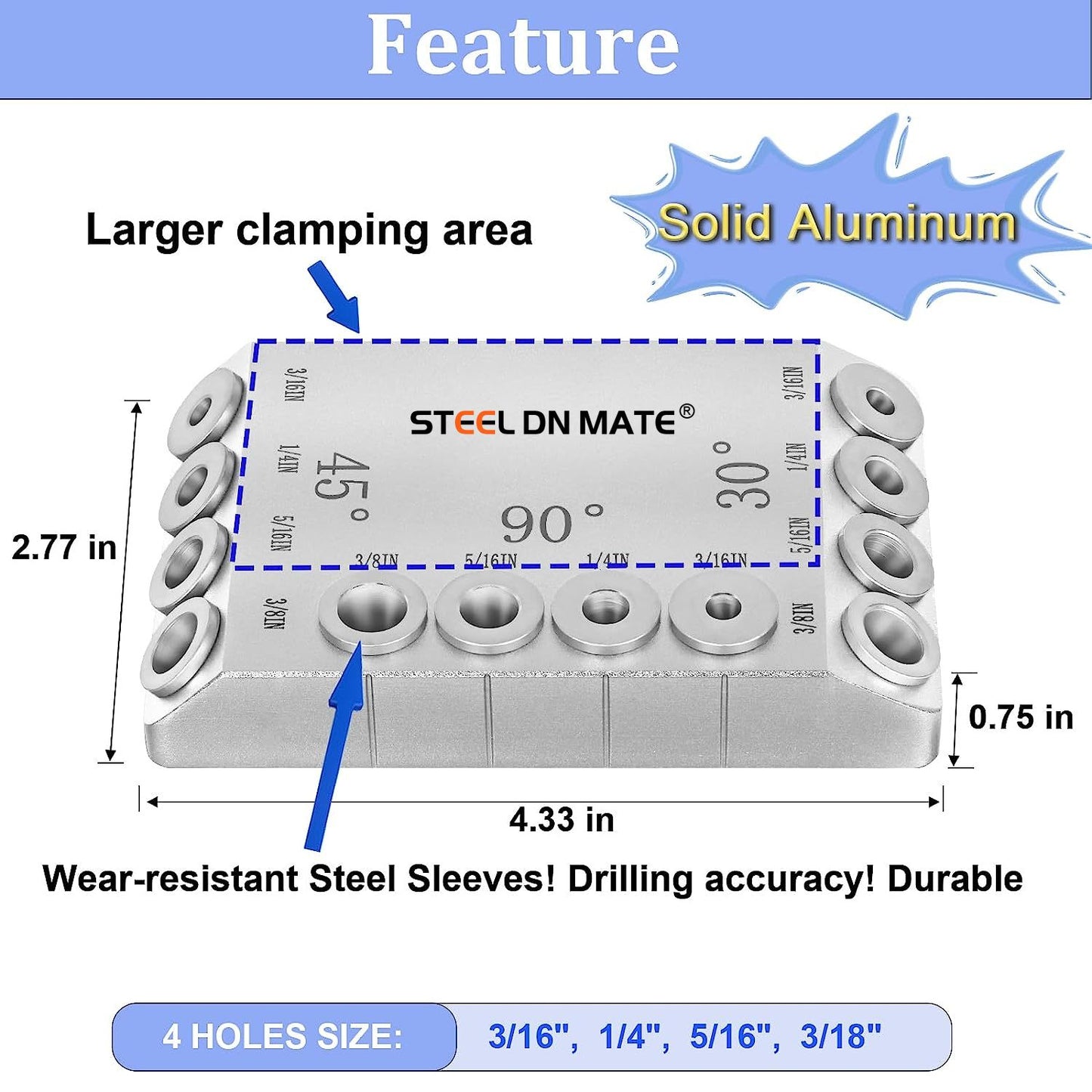

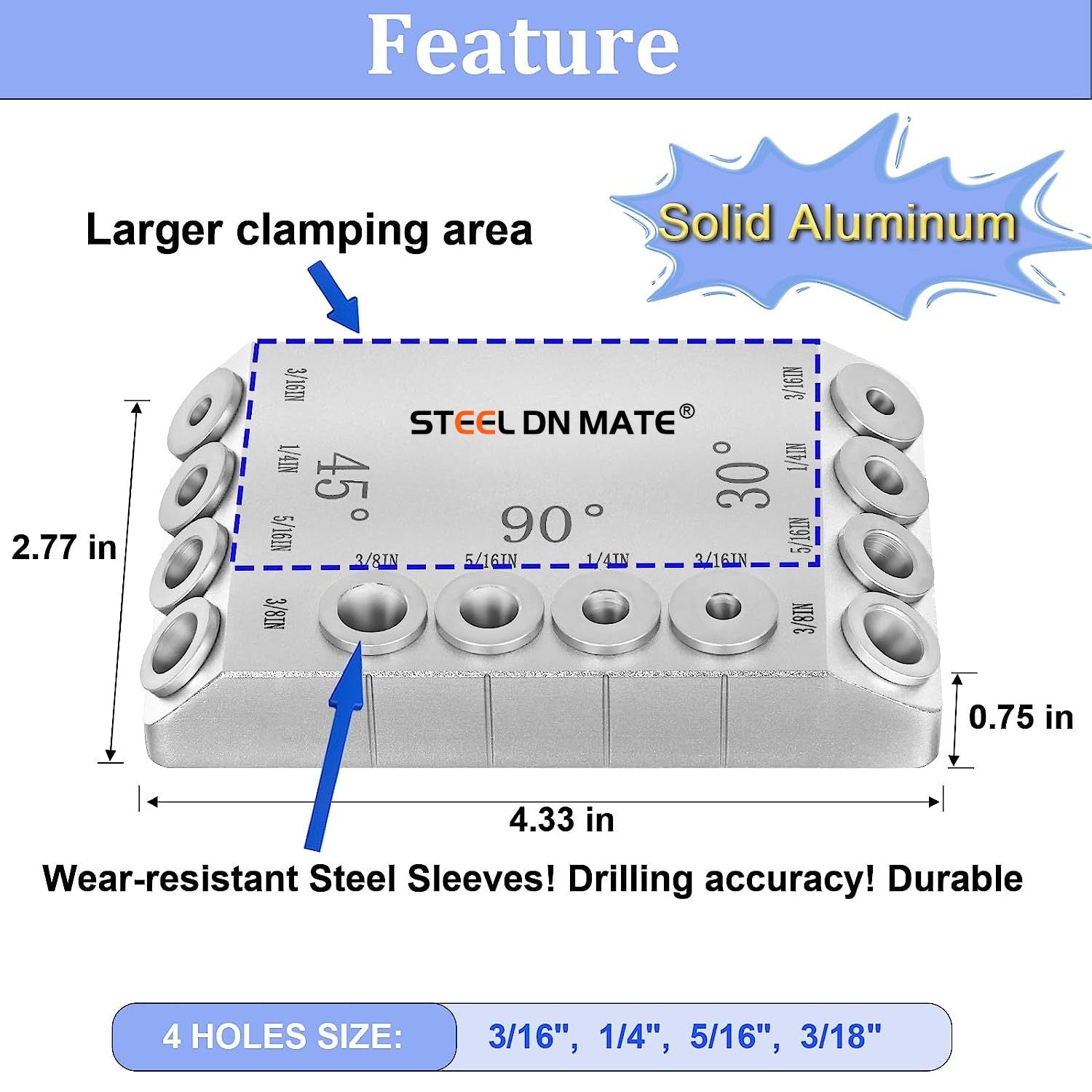

Patent design, larger clamping area for easy operation. It can work with 6" F and C clamp (not included) for stability, no shaking, and ensure safer, faster drilling.

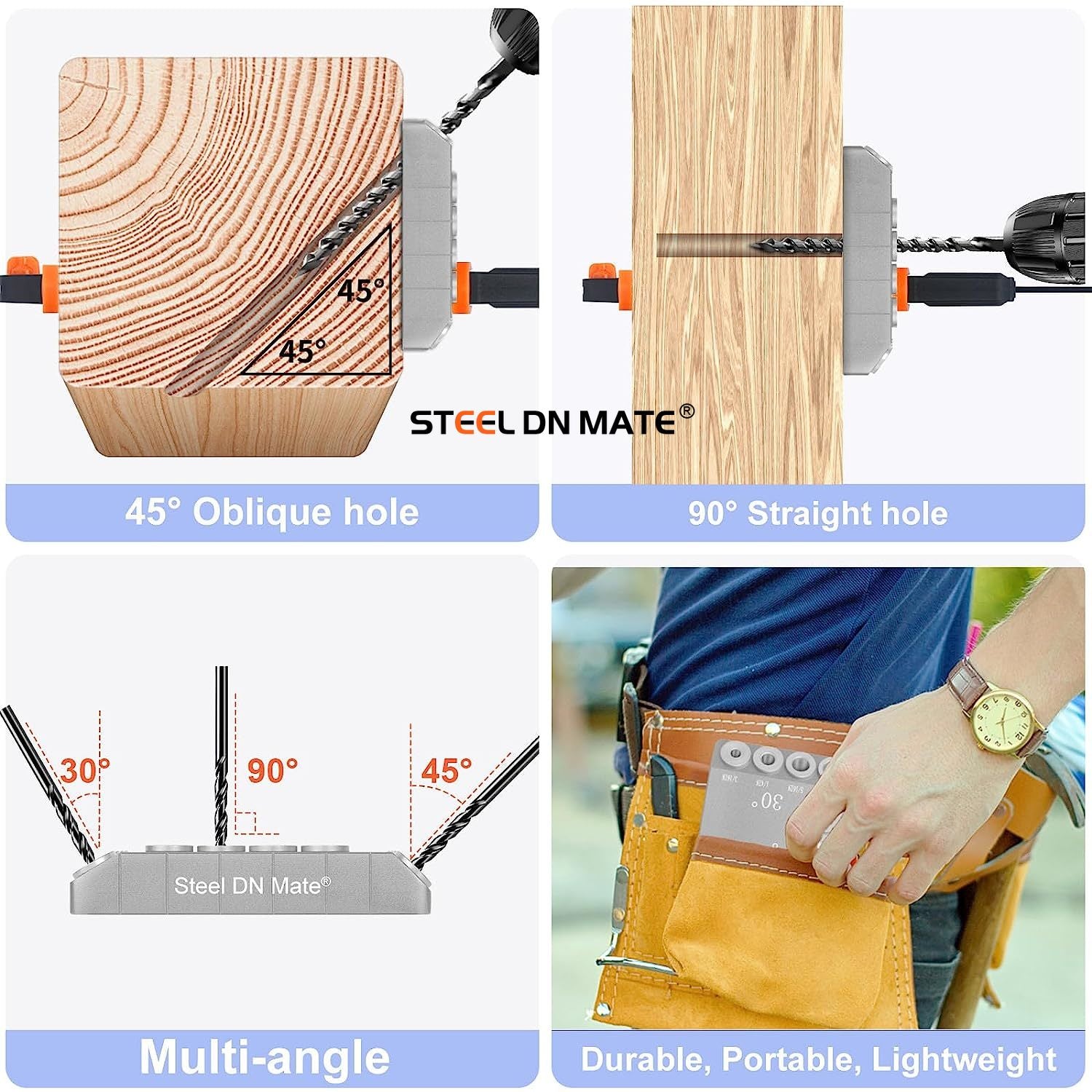

Accurate 3 different multi angles drill guide. The angle drill guide allows you to drill 30°, 45°, and 90° angle holes for railings and deck posts, stair, and other DIY railing kits.

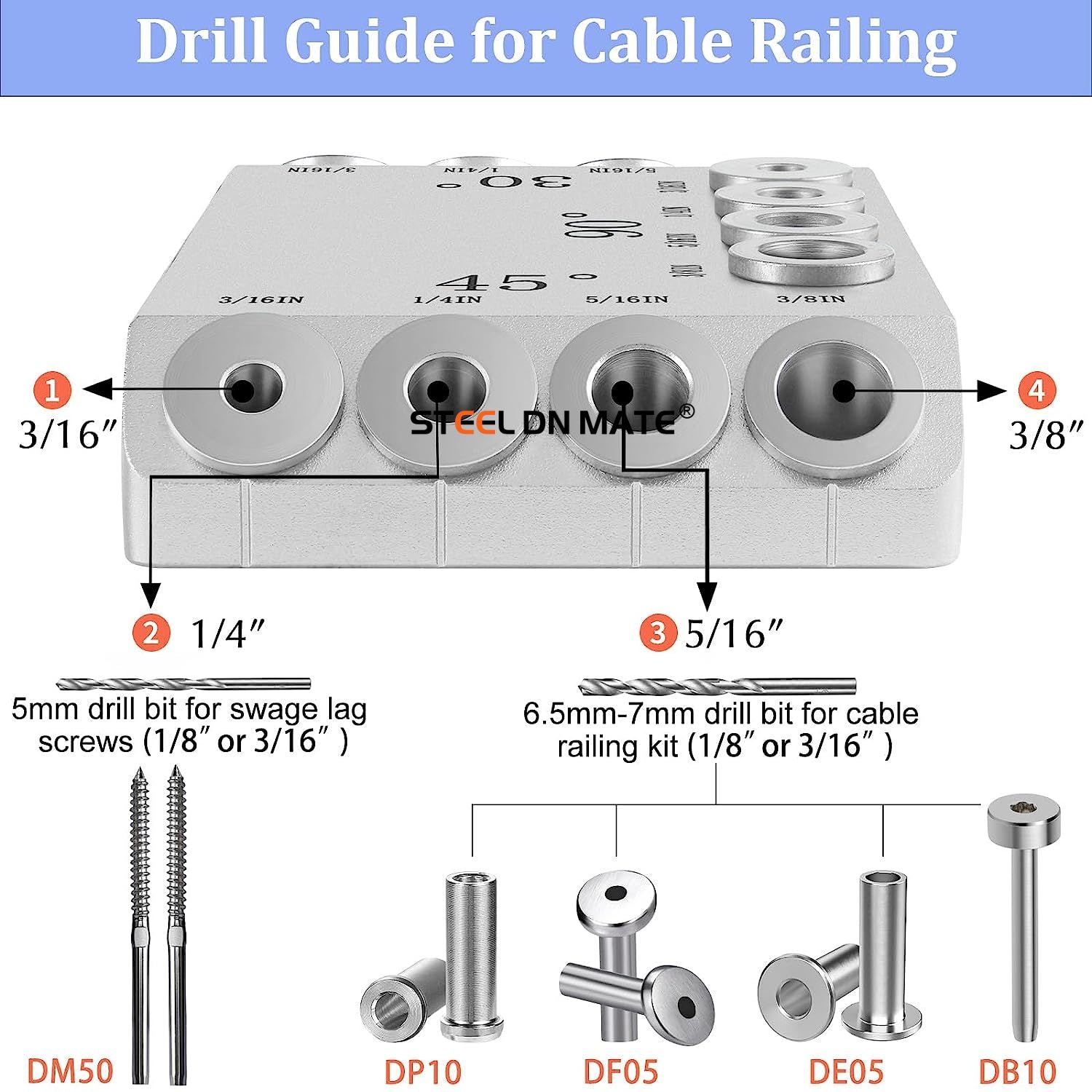

Fixed 4 hole sizes of drill block guide for cable railing: 3/16" (4.8mm), 1/4" (6.4mm), 5/16" (8mm), and 3/8" (9.6mm). These sizes are specifically chosen to work perfectly with most cable railing kits, cable protector sleeves, and lag screws.
Product Description
Why choose the Steel DN Mate drill hole guide?
1.Durable and tough body: Made of Aluminum 6061, which is significantly more durable than normal Aluminum alloys, high hardness, strength, and excellent resistance to wear and corrosion.
2. Hardened hole sleeves for accuracy: The Chrome-plated steel sleeves undergo high-temperature quenching, increasing hardness. Coated with electroplating, they effectively prevent wear from drilling. This ensures drilling accuracy without cracking or expanding. Just confidently drill!
Reliable tool for railing!
Four Guide Hole Size
- 3/16" (4.8mm)
- 1/4" (6.4mm)
- 5/16" (8mm)
- 3/8" (9.6mm)
- Aluminum
- Three different drilling angles
- Four sizes of guide holes
Specification
- Material: Heavy Duty Steel, Aluminum
- Color: Anodized Orange Surfac
- Dimensions: 2.8 × 4.2 × 1 in
- Drilling Angle: 30°, 45°, 90°
- What you get: 1 × Drill Guide
- Application: Suitable for installing various cable railing systems

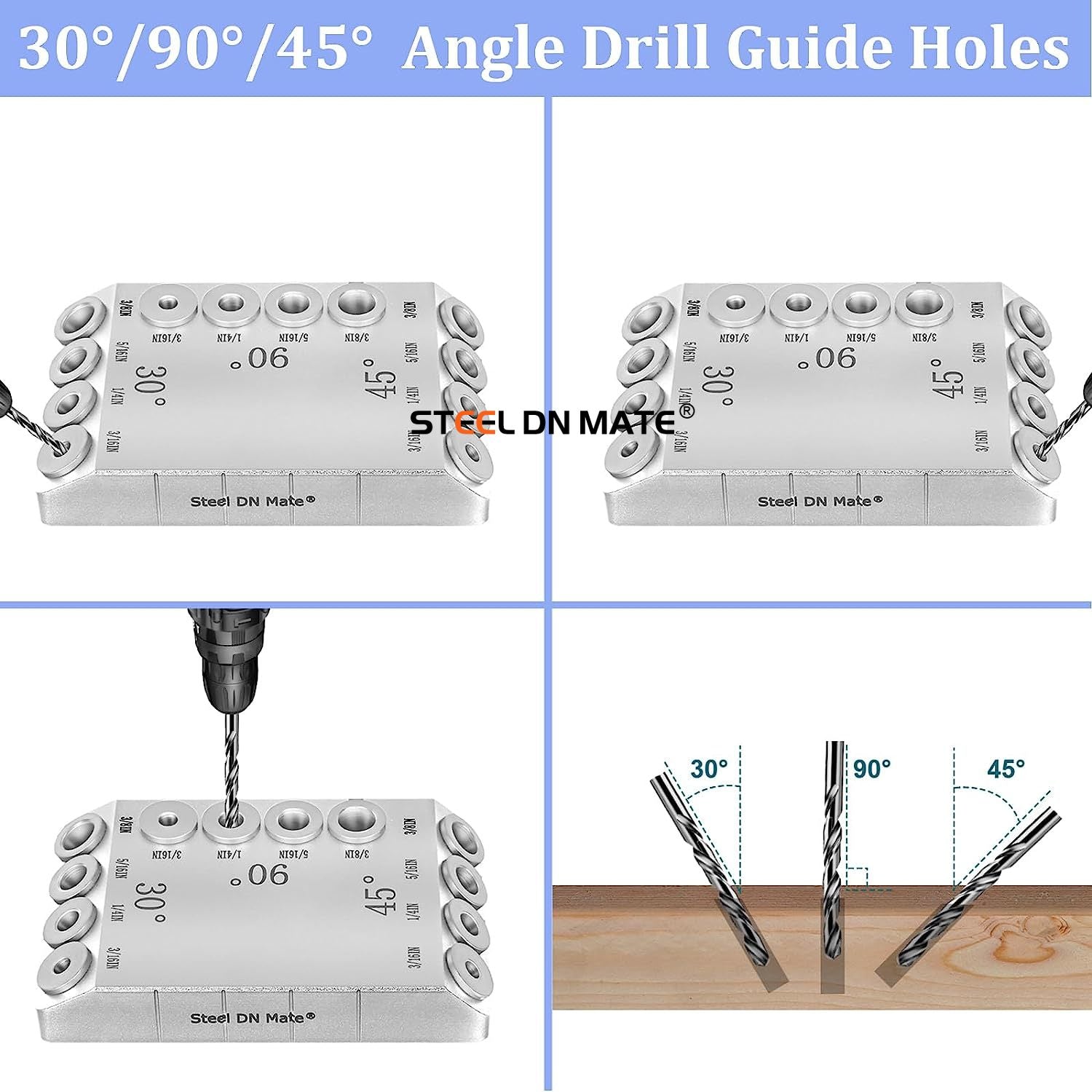

Accurate 3 Drilling Angles
|
|
|
|
|---|---|---|
30 Degree Drilling HolesSuitable for installing 30° stair railing system. It can be used for steel dn mate DT05 (30° Angle Protector Sleeves), steel dn mate DX30 (Angle Beveled Washer) and other cable railing kit. |
90 Degree Drilling holesSuitable for installing level deck railing system. It can be used with steel dn mate DE05, DP10 (Protector Sleeves), steel dn mate DM50 (Swage Lag Screws) and other cable railing kit. |
45 Degree Drilling holesSuitable for installing 45° stair cable railing system. It can be used for steel dn mate DF05 (45° Angle Protector Sleeves), steel dn mate DH10 (Swage Turnbuckle Hardware) and other cable railing kit. |
How to install:
- Measure the scale position and mark it

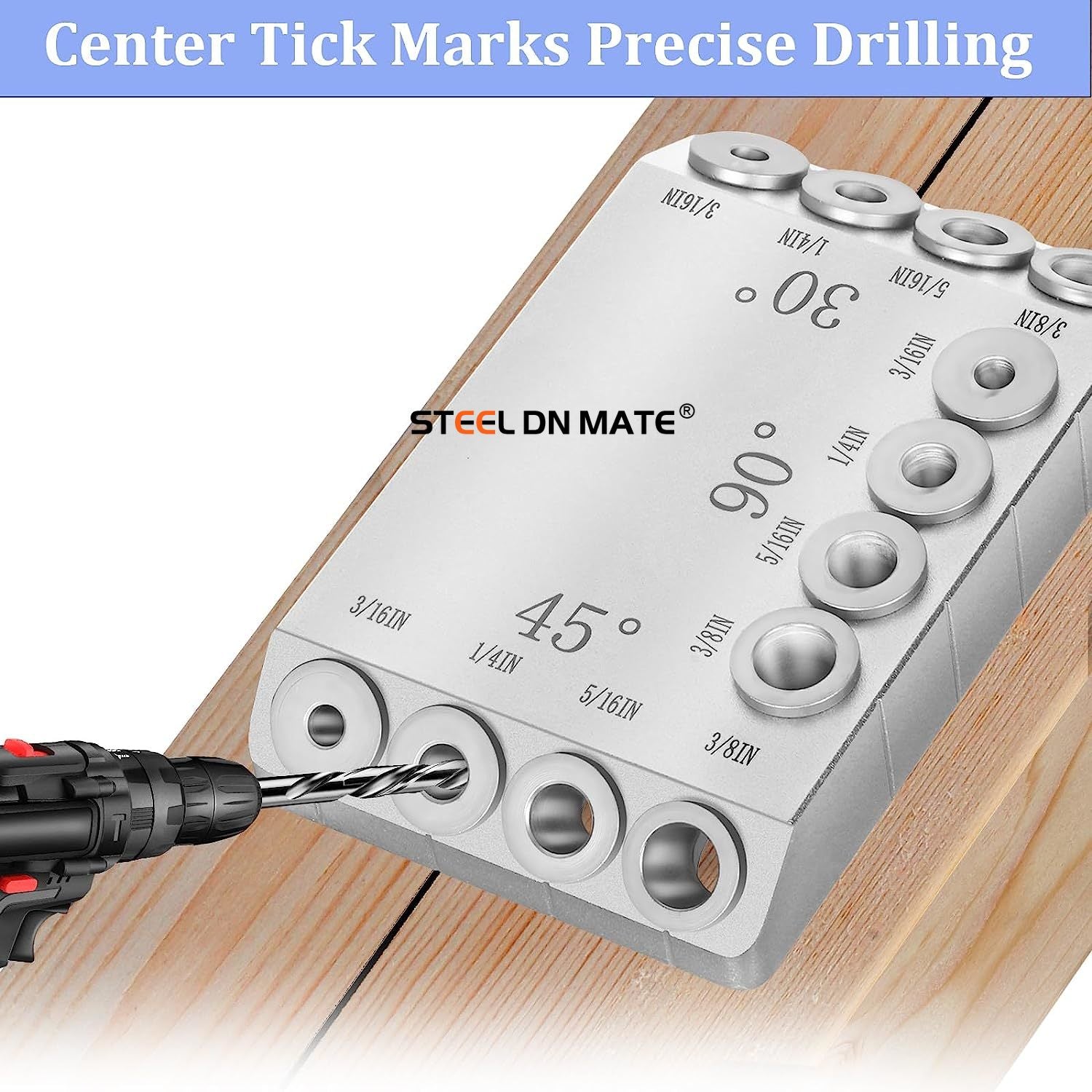

- Line up the marks with the right hole in the jig

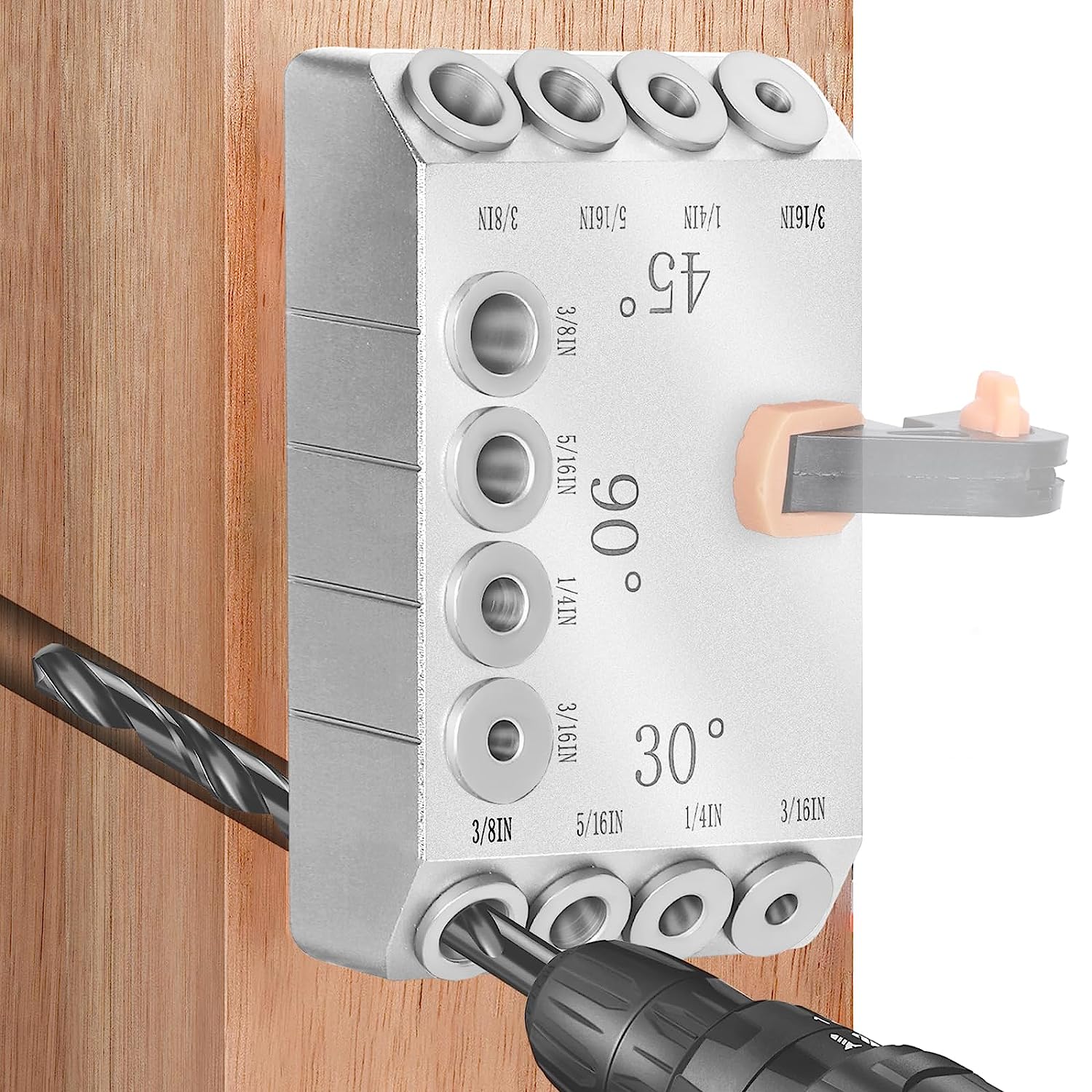

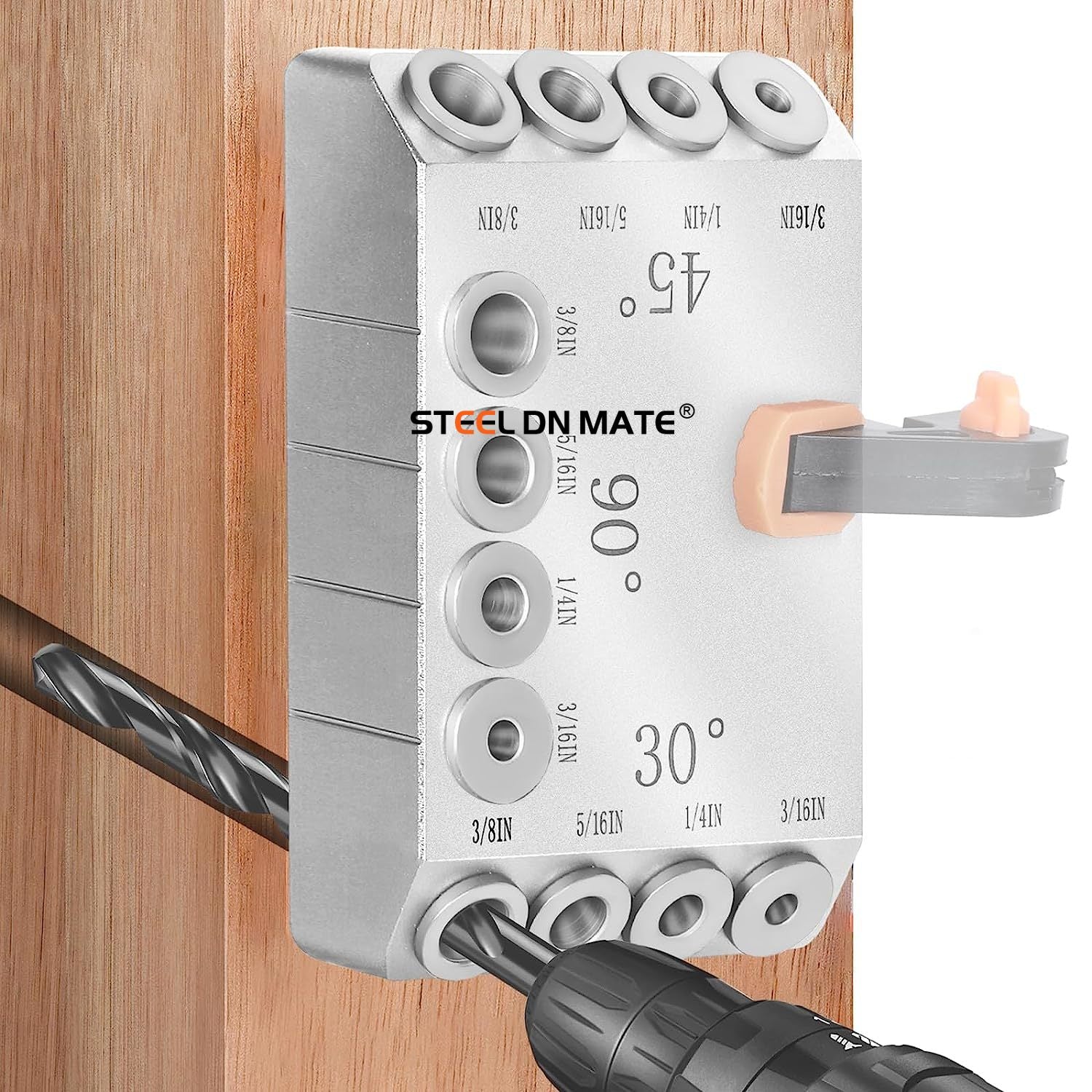

- Fix with woodworking F clamp or C clamp.
- Choose the right drill and start drilling.
It is nice kit that does the job it sets out to do.
Accurate and easy to operate
This angle jig is made of premium quality aluminum alloy, with corrosion resistance and durability. It is lightweight, small, easy to use and carry. We enchase the holes with steel protective sleeves, so no worry about it may crack during drilling, causing the guide holes to get broken or inaccurate.
It can be used repeatedly, which solves the trouble of finding the product repeatedly for you.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Angle jig guide | Swage lag screws | Hydraulic crimping tool | Angle beveled protector sleeves | Straight protector sleeves | 1/8" Stainless steel cable | |
| Material | Metal | T316 Stainless Steel | Steel | T316 Stainless Steel | T316 Stainless Steel | T316 Stainless Steel |
| Size | 1/8" | 1/8" | All | 1/8" | 1/8" | 1/8" |
| Rust-proof |
