About this item

• Ultra harden material for durability and accurate drilling：the body is made of high quality solid aluminum, high hardness, strength, CNC anodized orange finish, excellent resistance to wear and corrosion. To ensure precise drilling, we embed harden chrome-plated steel sleeves into this drill jig, using advantage tech, guarantee holes without wearing. Just drill with confidence, as the sleeves will not crack or expand, keep drilling accuracy.

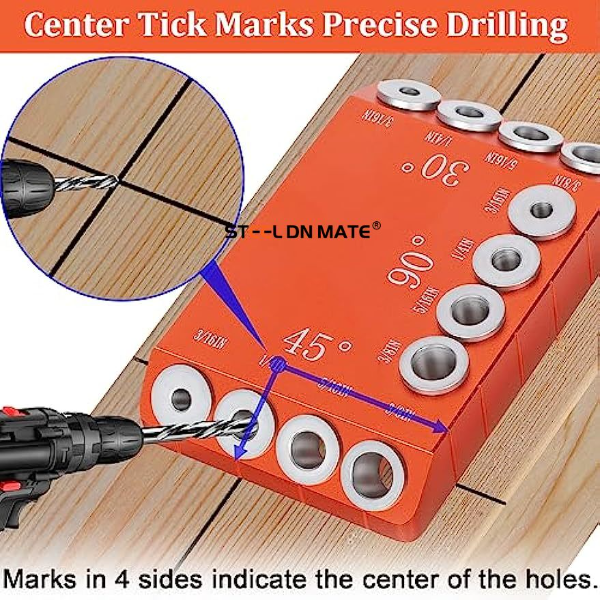

• Patent design, larger clamping area for easy operation, and center tick marks. We innovate this drill jig for angled holes with a dedicated area that doesn't occupy any holes, ensure you can consistently clamp without covering the holes. CLEAR MARKS on 4 sides of the drill block indicate the cente CENTER of the holes for precise and convenient use. It can work with 6" F and C clamp (not included) for stability, no shaking, and ensure safer, faster drilling.
• Accurate 3 different multi angles drill guide: The angle drill guide allows you to drill 30°, 45°, and 90° angle holes for railings and deck posts, stair, and other DIY railing kits. These angles are fixed with no deviations, ensuring precise results. Using this drill guide for straight holes, you can quickly and accurately drill 30/45/90 degree holes with an electric hand drill. It saves time, guarantees excellent results.

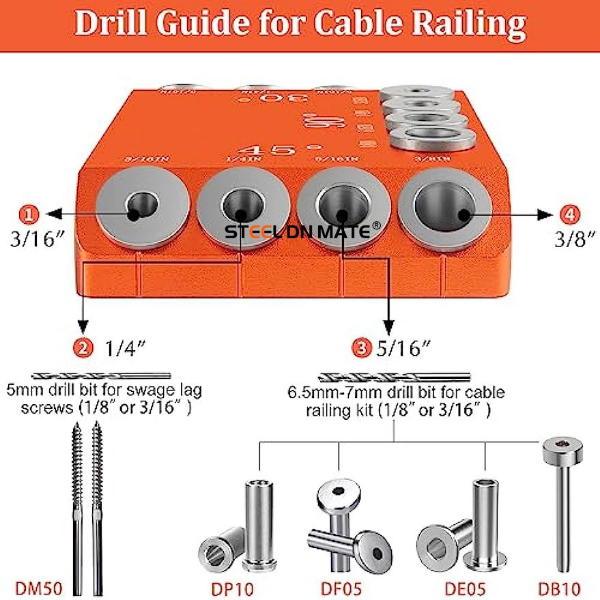

• Fixed 4 hole sizes of drill block guide for cable railing: 3/16" (4.76mm), 1/4" (6.35mm), 5/16" (7.93mm), and 3/8" (9.52mm). These sizes are specifically chosen to work perfectly with most cable railing kits, cable protector sleeves, and lag screws. The portable drill jig can fit easily into your pocket. It is user-friendly, making it simple to use and carry.
• 365-day free replacement: We are fully confident in the durability of our portable dowel drill guide. This drill jig for straight holes and angle holes is a very helpful tool of cable railing system. We provide a wide range of cable railing kits, designed and manufactured by Steel DN Mate. Scroll down to find more items.

Product Description

Why choose the Steel DN Mate drill hole guide?

1.Durable and tough body: Made of Aluminum 6061, which is significantly more durable than normal Aluminum alloys, high hardness, strength, and excellent resistance to wear and corrosion.

2. Hardened hole sleeves for accuracy: The Chrome-plated steel sleeves undergo high-temperature quenching, increasing hardness. Coated with electroplating, they effectively prevent wear from drilling. This ensures drilling accuracy without cracking or expanding. Just confidently drill!

Reliable tool for railing!



High-temperature quenching



• Material: Steel metal protector Hole, Aluminum 6061
• 4 sizes holes: 3/16", 1/4" , 5/16", 3/8"
• Drilling Angle: 30°, 45°, 90°

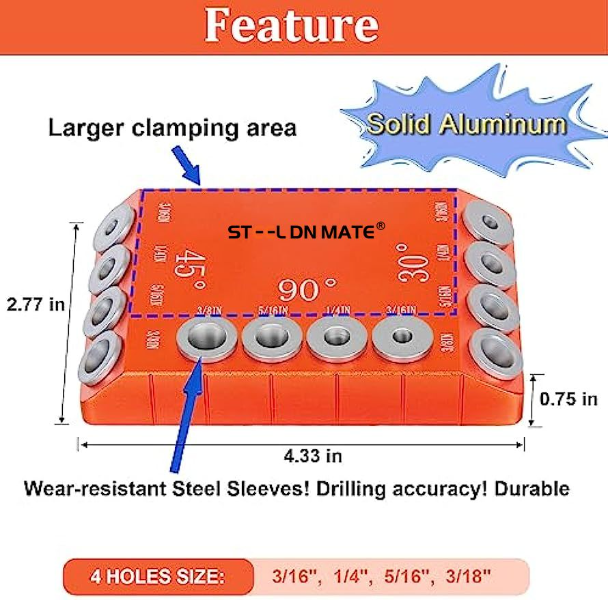

• Dimensions: 2.77 × 4.33 × 0.75 in
• Color: Anodized Orange
• Package includes: 1 × Drill Guide and user guide



Easier operation

We innovate this drilling guide with a much larger clamping area for easy operation, a dedicated area that doesn't occupy any holes, so you can consistently clamp without covering the holes you need to use.

Accurate multi angle drill guide

30 degree dowel drill guide Suitable for installing 30° stair cable railing system, most American sair angle. It can be used to install Steel DN Mate DT03 (30° Angle Protector Sleeves), DX30 (Angle Beveled Washer) and other cable railing kit.	90 degree drill guide Suitable for installing staright holes, level or vertical deck railing system. It can be used to install Steel DN Mate DE05, DP10 (Protector Sleeves), DM50 (Swage Lag Screws) and other cable railing hardware.	45 degree drill guide Suitable for installing 45° stair railing system. It can be used for Steel DN MateDF05 (45° Angle Protector Sleeves), DH10 (Swage Turnbuckle Hardware) and other deck railing kits.

Installation Instructions

Step 1 Select the desired drilling degree and hole. Align the jig in the designated location, ensuring that the scales are properly aligned. The tick holes Marking center.	Step 2 Secure the drill angle guide on the workpiece with 6” woodworking F clamp or C clamp for no shaking and safer, faster drilling.	Step 3 Load the drill bit into your drilling machine and set it to the correct speed and power settings for the material you are drilling.

One-Stop Shopping

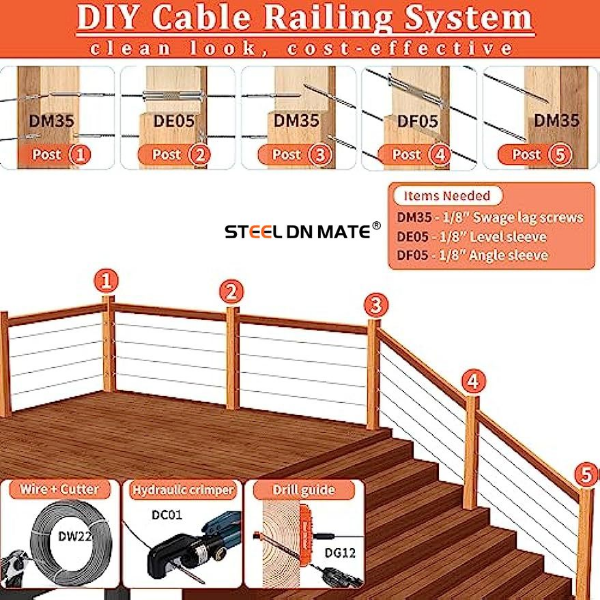

For the above cost-effective cable railing system, it includes:



• Left&right swage lag screws -- DM35
• Level protector sleeves --DE05
• Angle protector sleeves -- DF05
• Steel wire cable and cutter --DW22
• Hydraulic crimping tool -- DC01
• Drill guide -- DG12



Warm reminder:



1. The maximum distance between two end posts is 16 Feet.
2. That the post spacing between two posts max 4 feet
3. The cable spacing between the 2 cable runs (upper and lower ) is 3"



Note: Some states may have special regulations, check with your local administration for building codes.





	Angle drill jig guide	Swage lag screws	30 degree angle protector sleeves	45 degree angle protector sleeves	Straight protector sleeves	1/8" Stainless steel cable
Material	Aluminum, Steel	T316 Stainless Steel	T316 Stainless Steel	T316 Stainless Steel	T316 Stainless Steel	T316 Stainless Steel
Size	3/16", 1/4", 5/16", 3/8"	1/8"	1/8"	1/8"	1/8"	1/8"
Rust-proof	✓	✓	✓	✓	✓	✓

About us

Steel DN Mate is a trustworthy brand that dedicates crafting top-quality DIY railing products. Our products are meticulously designed using high-quality materials and undergo rigorous testing to ensure exceptional quality and reliability. Despite the prevalence of cheap and low-quality imitations in the market, we are unwavering in our commitment to delivering products that exceed your expectations. We take pride in providing products that are worth every penny of your investment.
