Steel DN Mate

Steel DN Mate 50 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Included DM25

Steel DN Mate 50 Pack T316 Stainless Steel Right&Left Handed Thread Swage Lag Screws for Wood Post of 1/8" Steel Cable Railing Kit, Cable Railing Hardware, DIY Wood Baluster, Wrench Included DM25

Regular price $34.99 USD
Regular price $44.19 USD Sale price $34.99 USD
Sale Sold out
Shipping calculated at checkout.
Size
New deck railing design, clean and elegant. This cable railing kit includes 25 pcs left, 25 pcs right hand thread lag screws, and 2 drill bit. Stainless Steel T316 material, anti-rust ,water and corrosion,marine Grade, good for indoor or outdoor usage. With our new made wrench, installation becomes much easier.
This deck railing hardware fit 1/8" OD cable of railing system. The thread screws are designed for timber/wood post. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. Products without Left & right will bring you hassle and might damage the cable.

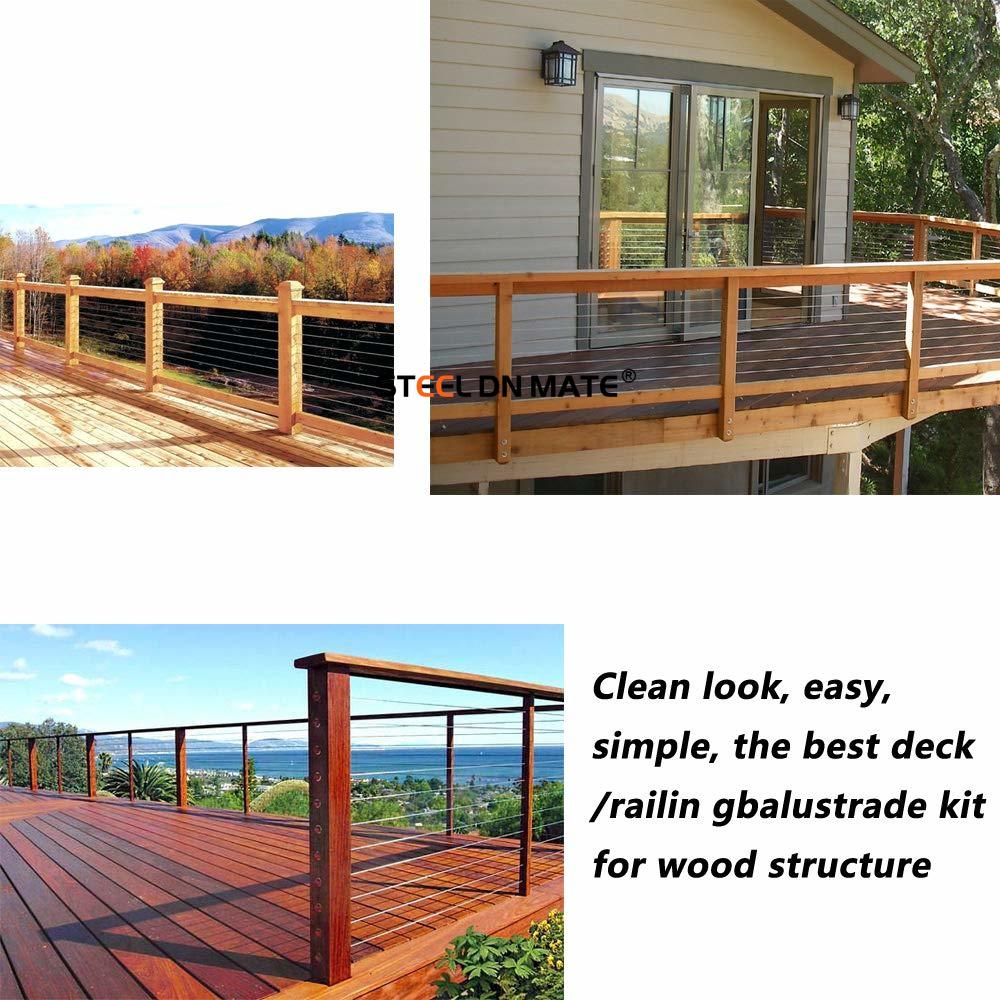

The lag screws could be drilled into wood to adjust the tightness without extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. Hydraulic crimper is needed to connect the cable to lag screws.
Length of cable should be 1-1/2"  shorter than wood surface distance(as shown in pic.4); if you want to DIY a high quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.
By the design of Right&left handed thread, of course it can be used to adjust the tension of attached cable, so the turnbuckles are not needed in the railing system. And this cable railing won’t be easily unfixed or destroyed.

Product Description

logo
logo

1
1

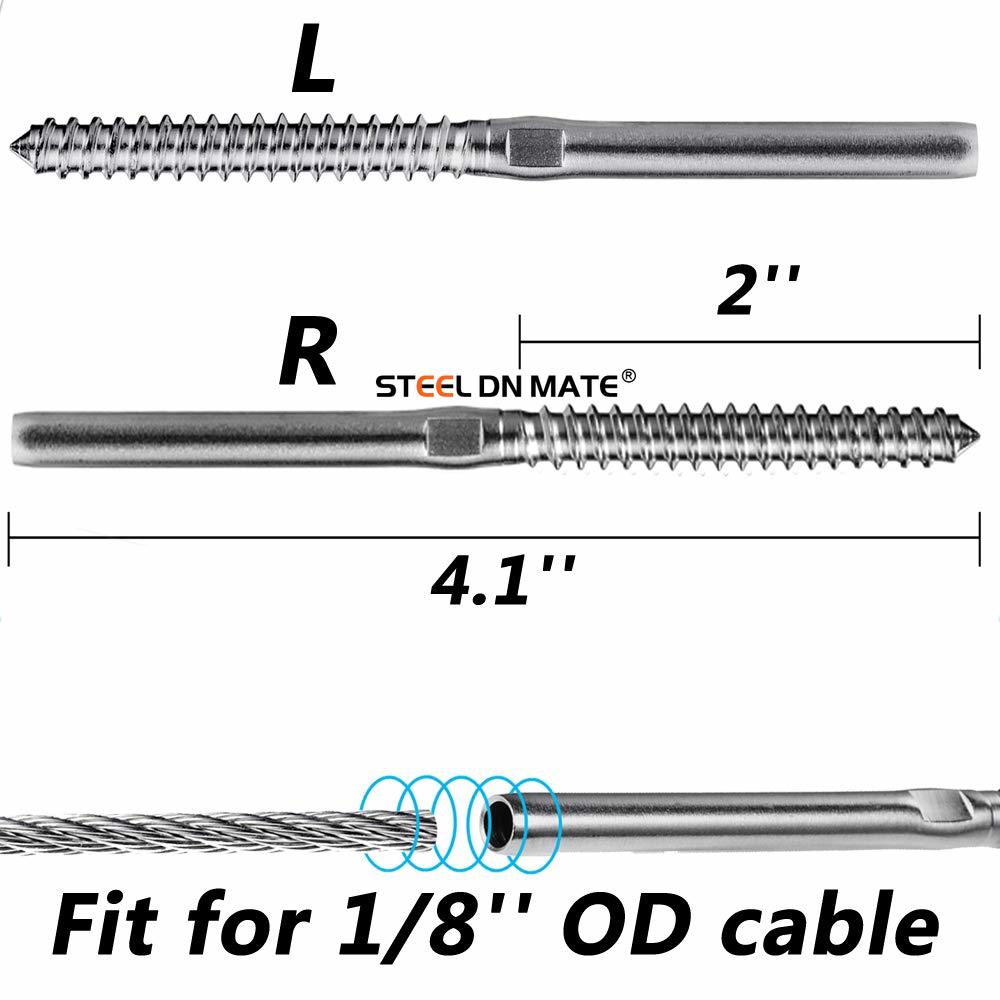

Left & Right Thread Swage Lag Screws

2
2

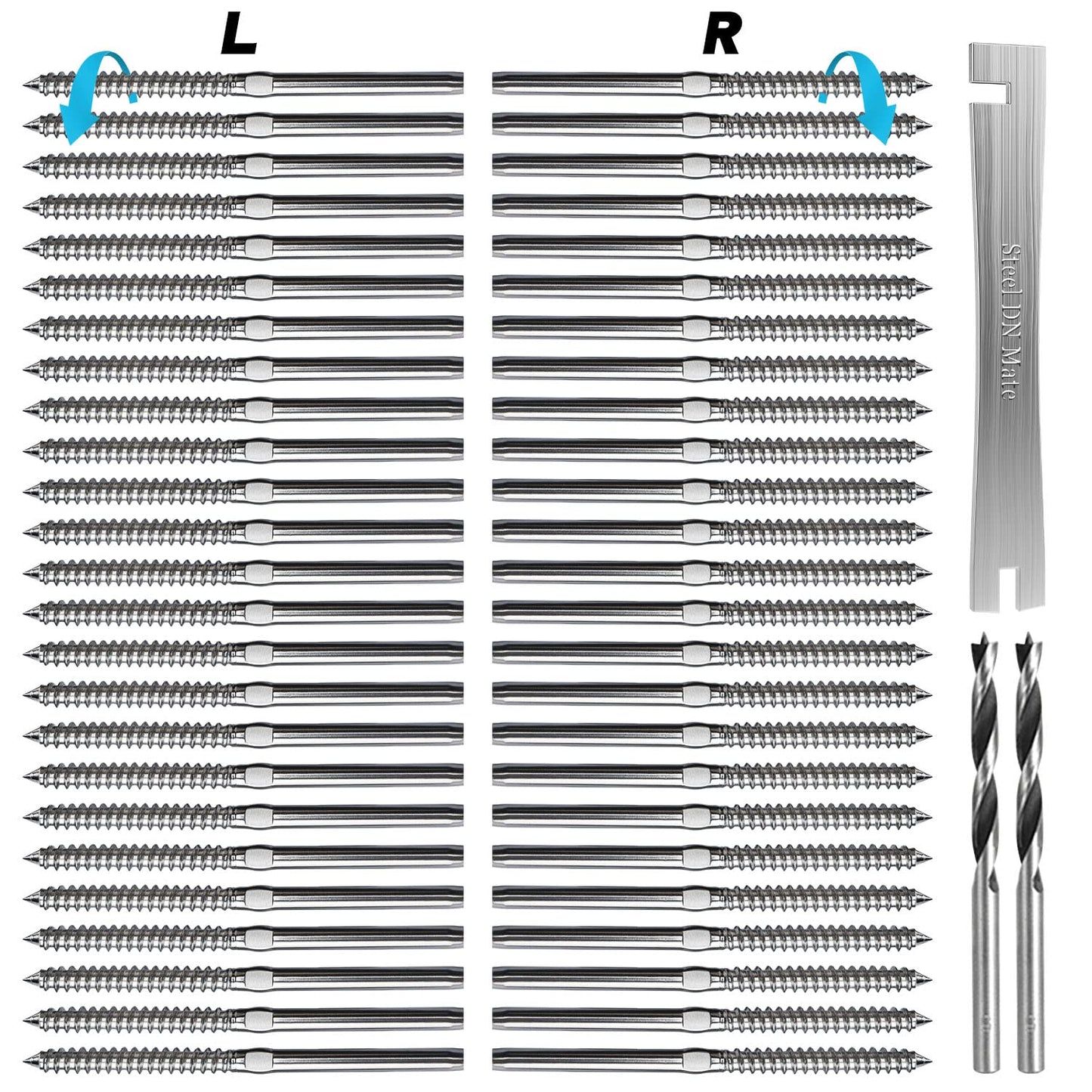

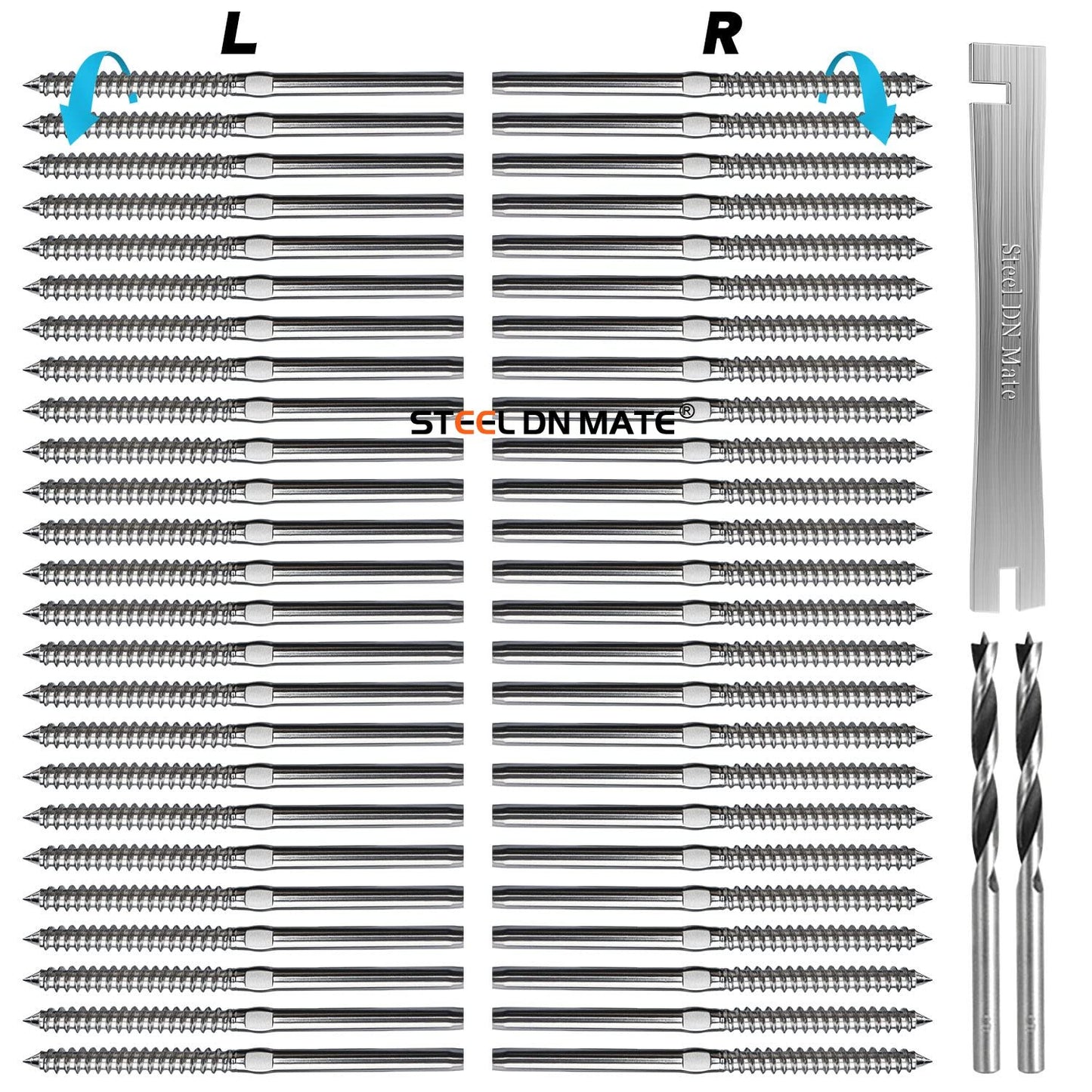

Package includes:



  • left handed thread lag screw:25 Pcs
  • right handed thread lag screw:25 Pcs
  • OD drill bit:2 Pcs
  • Wrench: 1



Steel DN Mate---BEST Quality Metal Handed Thread Swage Lag Screws

T316 Stainless Steel material, anti-rust ,water and corrosion,marine Grade, good for indoor or outdoor usage.

This deck railing hardware fit 1/8" OD cable of railing system.

The thread screws are designed for timber/wood post.

  • Stable and Durable
  • Clear look
  • Easy to install


Installation



1
1





2
2





3
3



Step 1

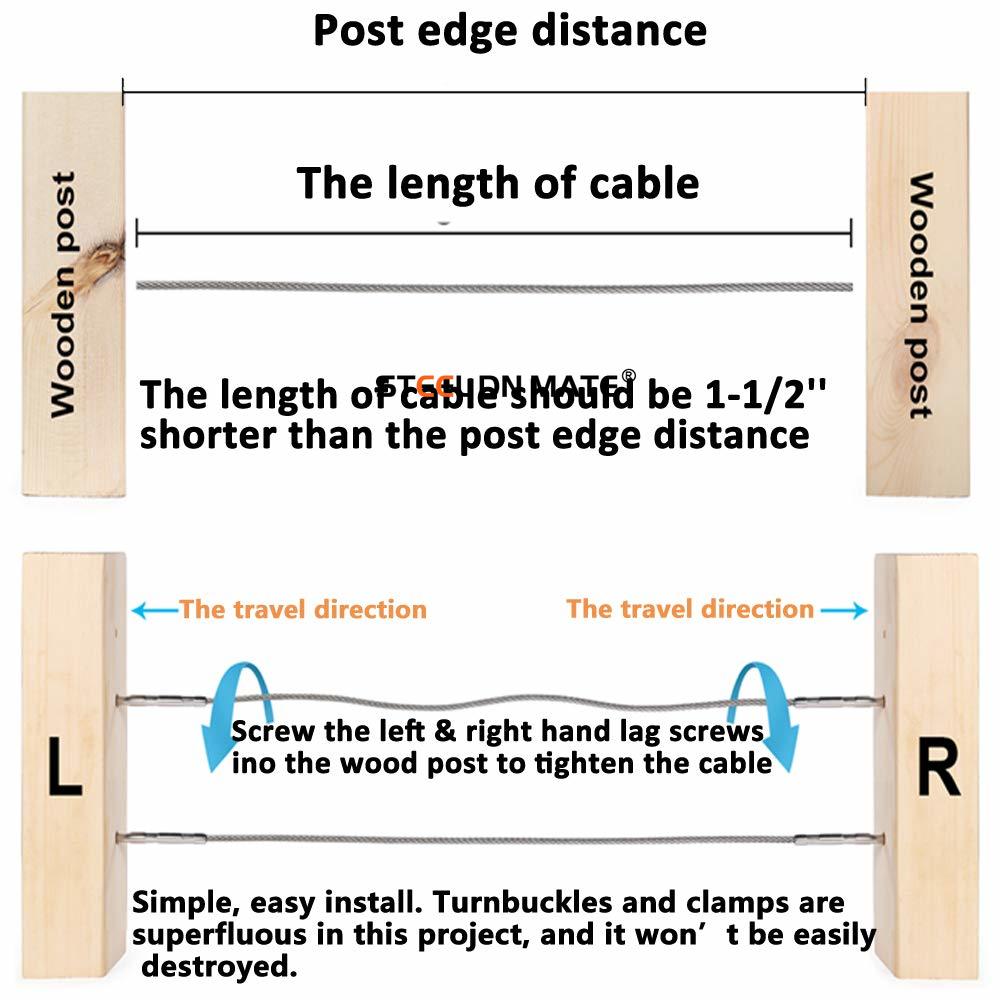

Measure the distance for the 2 wood post surface twice, and cut once. The length of cable should be 1-1/2 inch shorter than the distance of the two posts;

Step 2

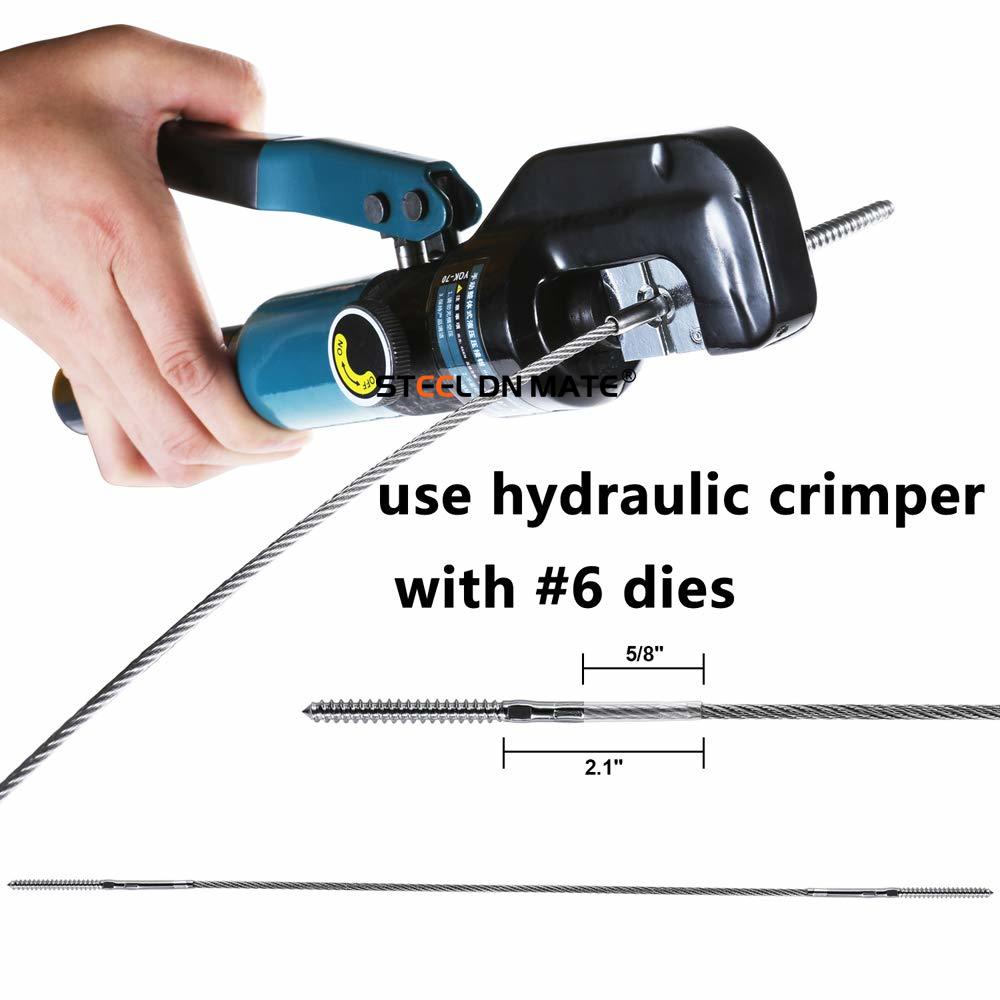

Connect the cable to the lag screws, swaging the screw with Steel DN Mate hydraulic crimper, one end with left hand thread and the other end with right hand thread;

Step 3

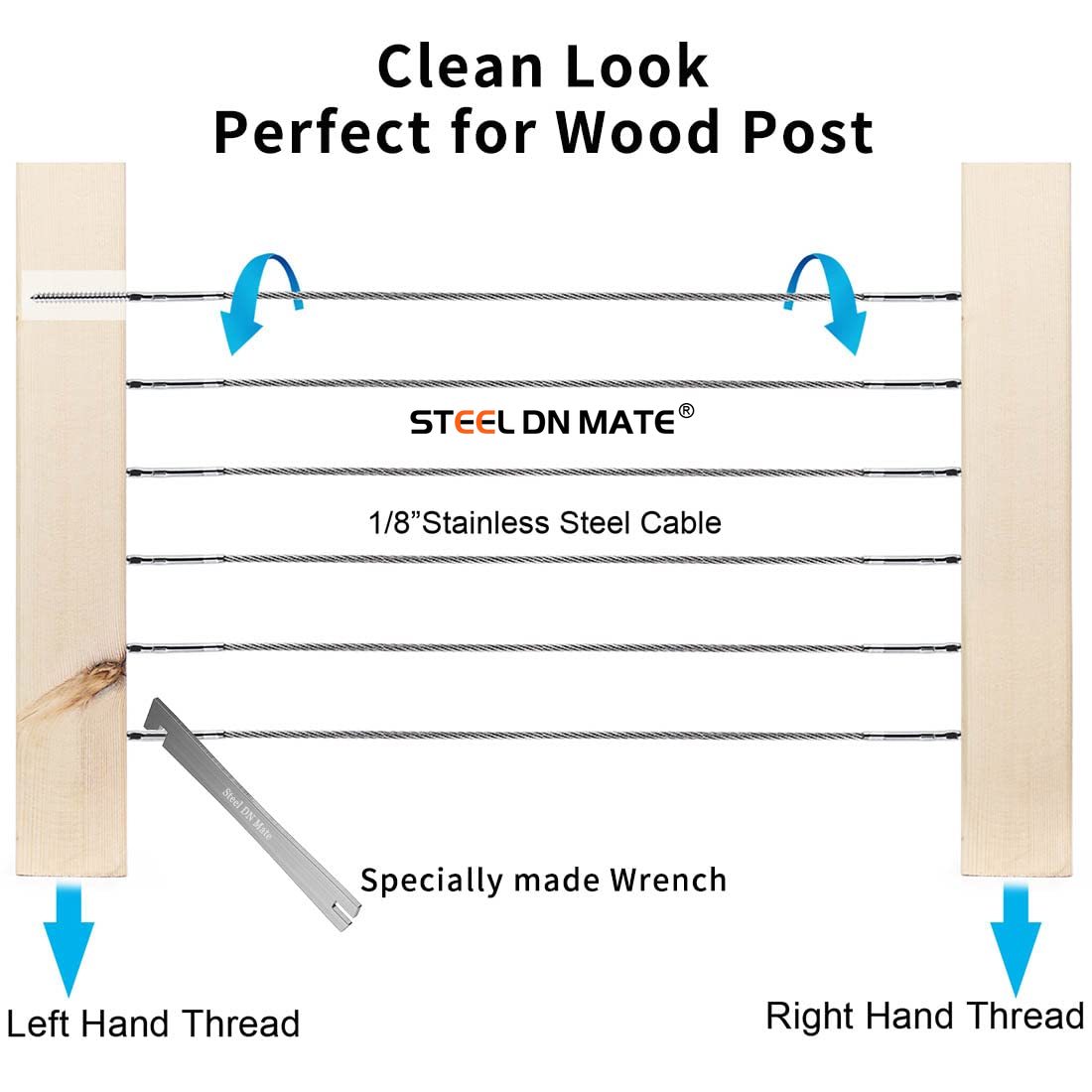

Screw the lag screws into the pilot holes in the post which have been drilled by the drill bit to adjust and tighten the cable. Turn the right & left woodscews thread in the same direction.



CONSEQUENT

1
1

2
2
3
2
5
5
  T316 Stainless Steel Lag Screws T316 Stainless Steel 1/8'' Wire Cable T316 Stainless Steel Hardware kit 30 ° Bevel Protector Sleeves T316 Stainless Steel Protector Sleeves Steel DN Mate Hydraulic crimper
Material T316 T316 T316 T316 T316 Steel
Rust-proof
Fit for Wood Instructure All Wood Instructure All Wood Instructure All
For 1/8” cable
Indoor use
Outdoor use
