Steel DN Mate

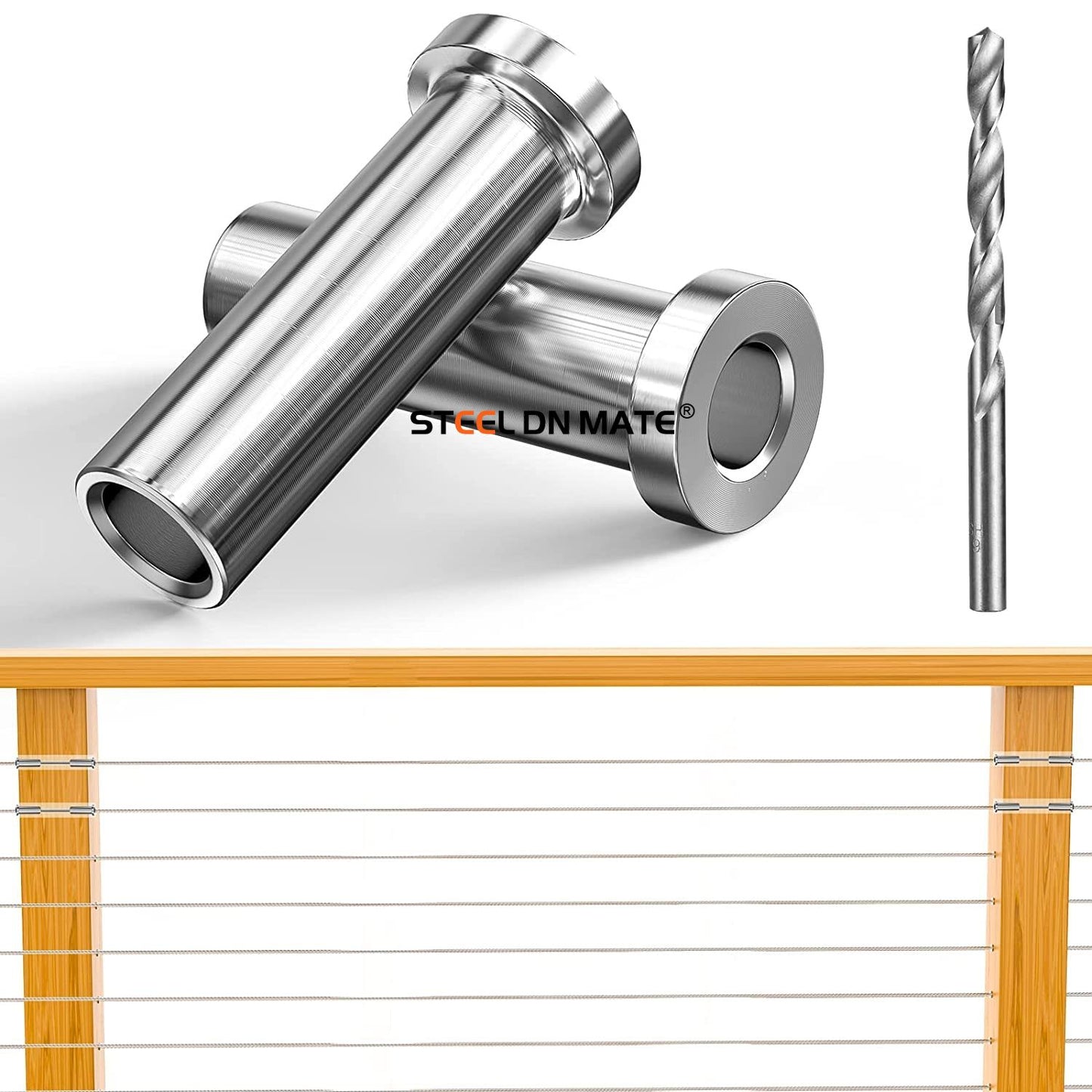

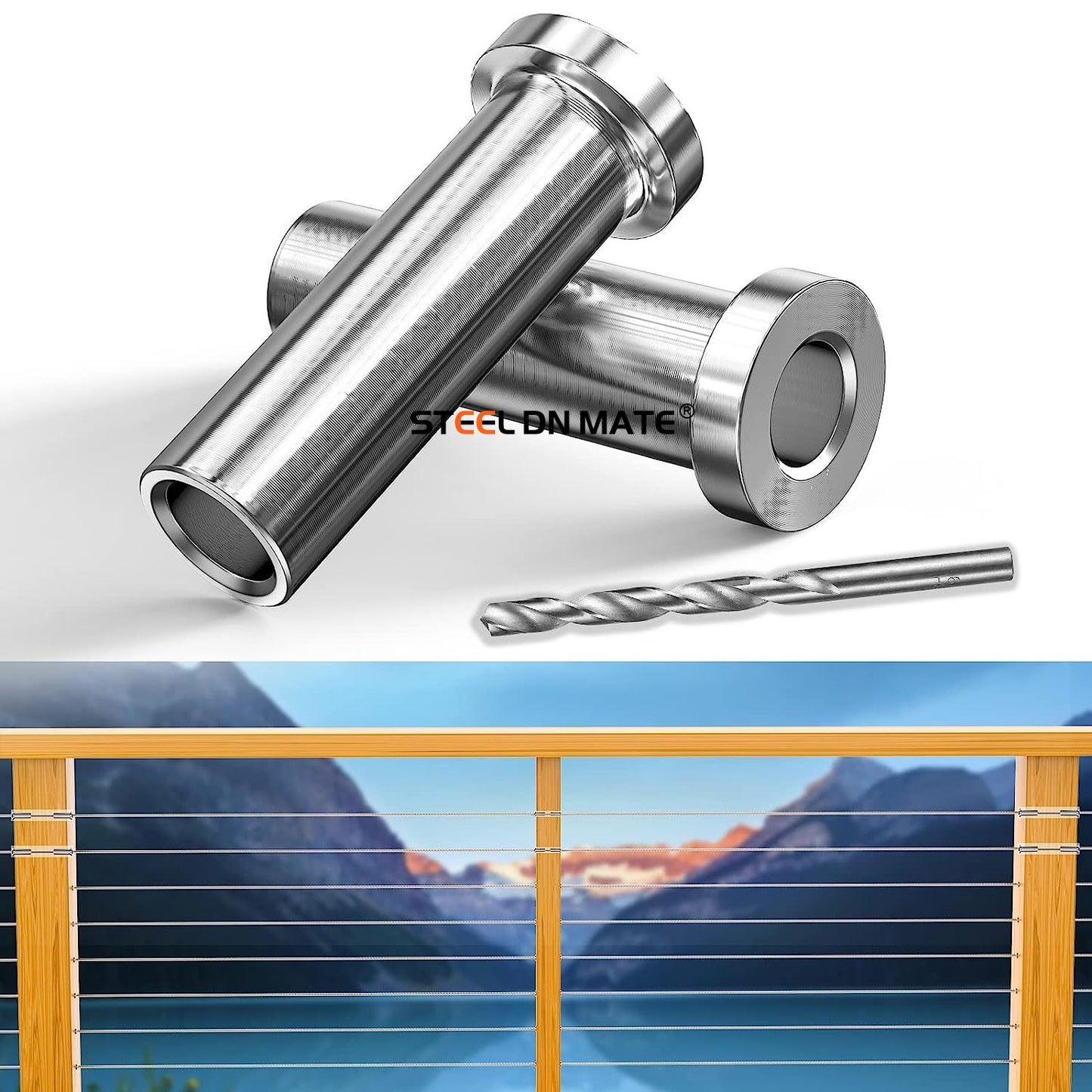

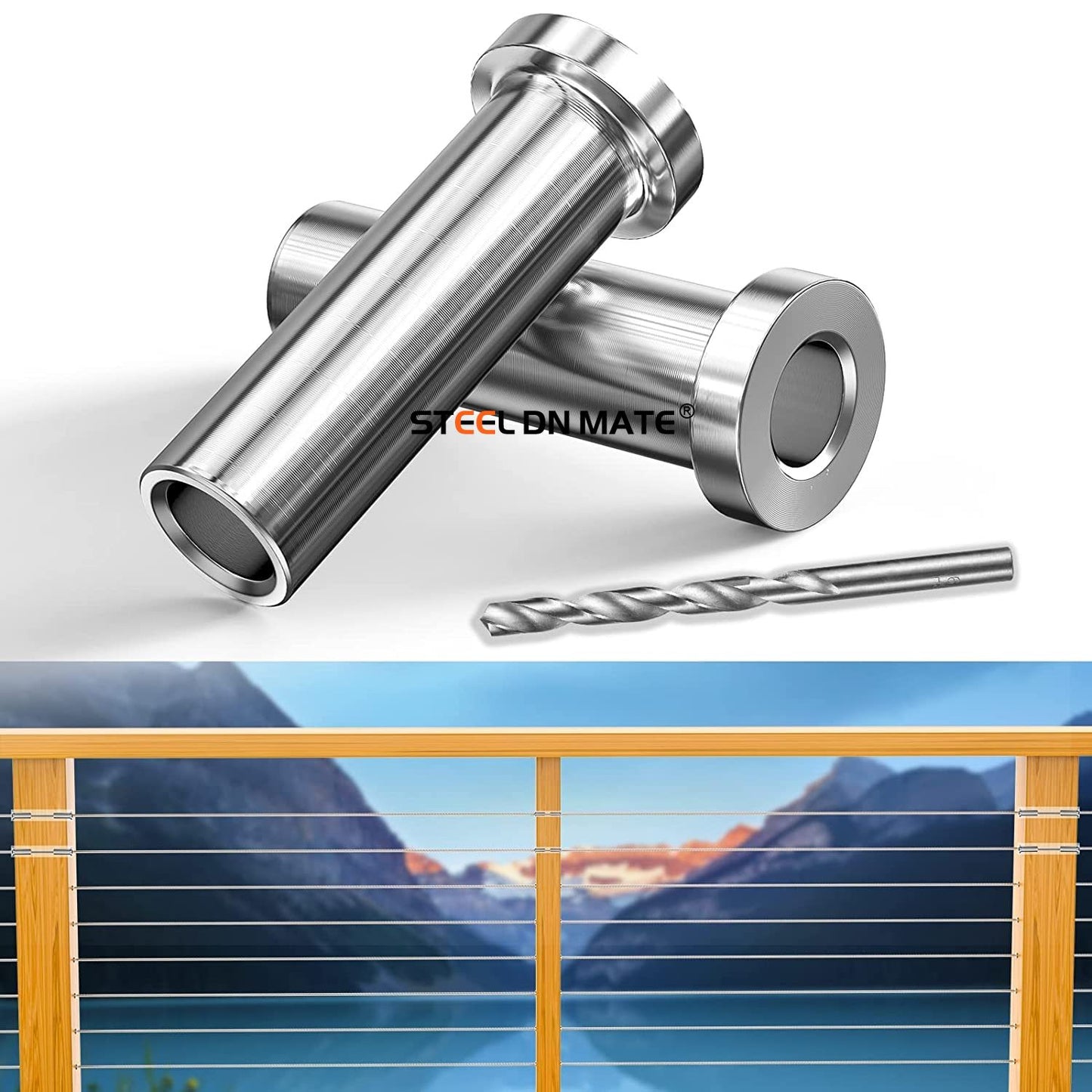

Steel DN Mate 50 Packs Stainless Steel Protector Sleeves for 1/8" Deck Cable Railing, for Wood/Composite Posts, T316 Marine Grade, Cable Railing Protector Sleeves DP05

Steel DN Mate 50 Packs Stainless Steel Protector Sleeves for 1/8" Deck Cable Railing, for Wood/Composite Posts, T316 Marine Grade, Cable Railing Protector Sleeves DP05

Regular price $15.89 USD
Regular price $20.07 USD Sale price $15.89 USD
Sale Sold out
Shipping calculated at checkout.
Number of Items
Material:The cable railing kit is made of T316 stainless steel marine grade, which is strong tensile strength, very sturdy and durable. It is rust and corrosion resistant, designed to install indoor and outdoor deck railing, even in coastal areas. Steel DN Mate offers refund guarantee if the sleeves rust. Please download the “User Manual (PDF)” under Product guides and documents.
Stylish clean appearance but the most cost effective. This cable railing kit covers the rough holes after drilling, provides a stylish clean. This cable railing system won’t block your view when you rest on deck. Also nearly no maintenance required. Unlike turnbuckle systerm, this simple deck cable system, (protectors+ lag screw) cuts down the cost by 33%. We think it combines of strength, light weight, appearance and cost effectiveness, perfect for residential or commercial.

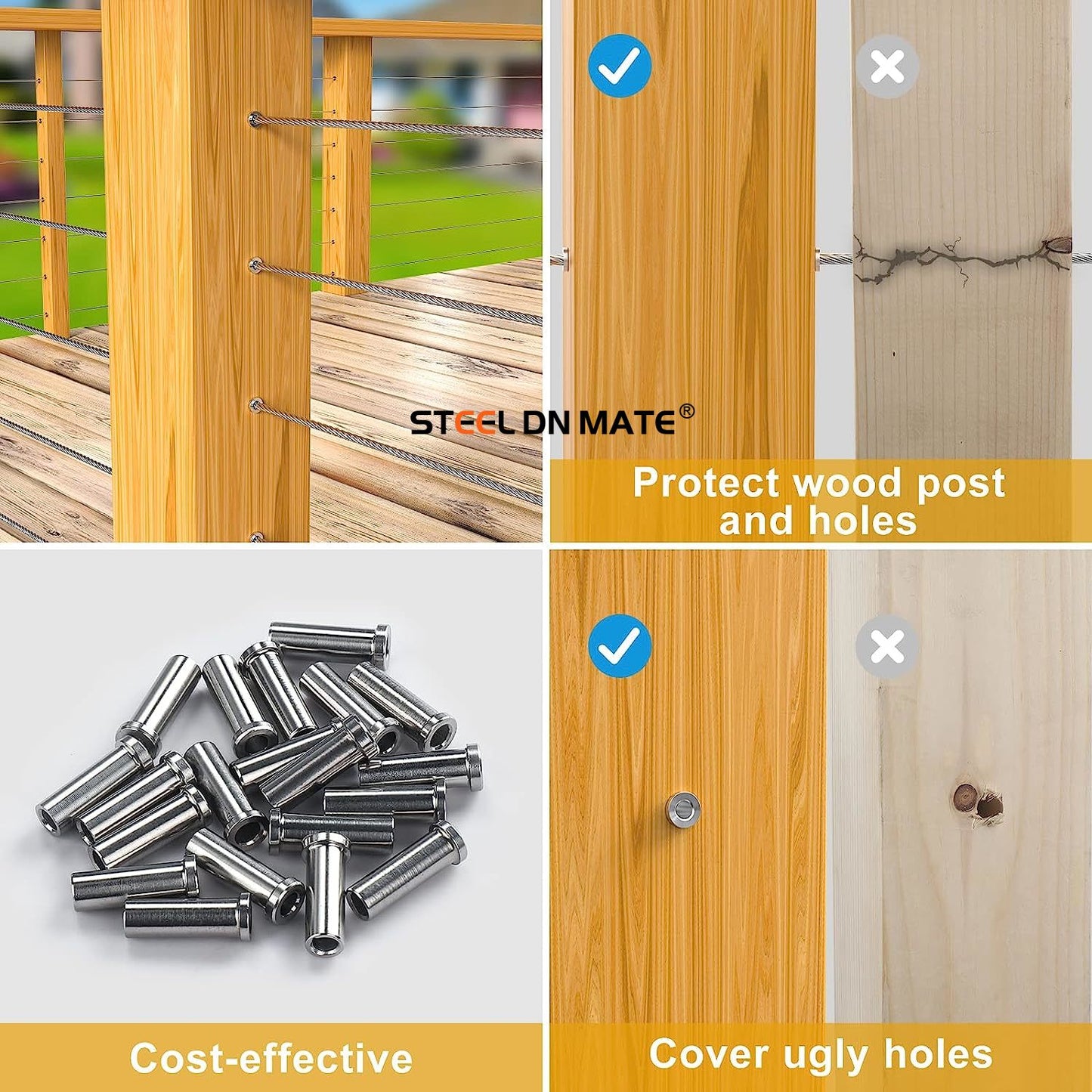

Protect posts and maintain cable tension. This stainless steel protective sleeve is designed to prevent damage to the relatively soft wood posts from friction wear. It can maintain the cable tension to prevent vibration. Important Note, this level cable railing hardware can only be used in intermediate wood posts, not suitable for metal or angle posts.

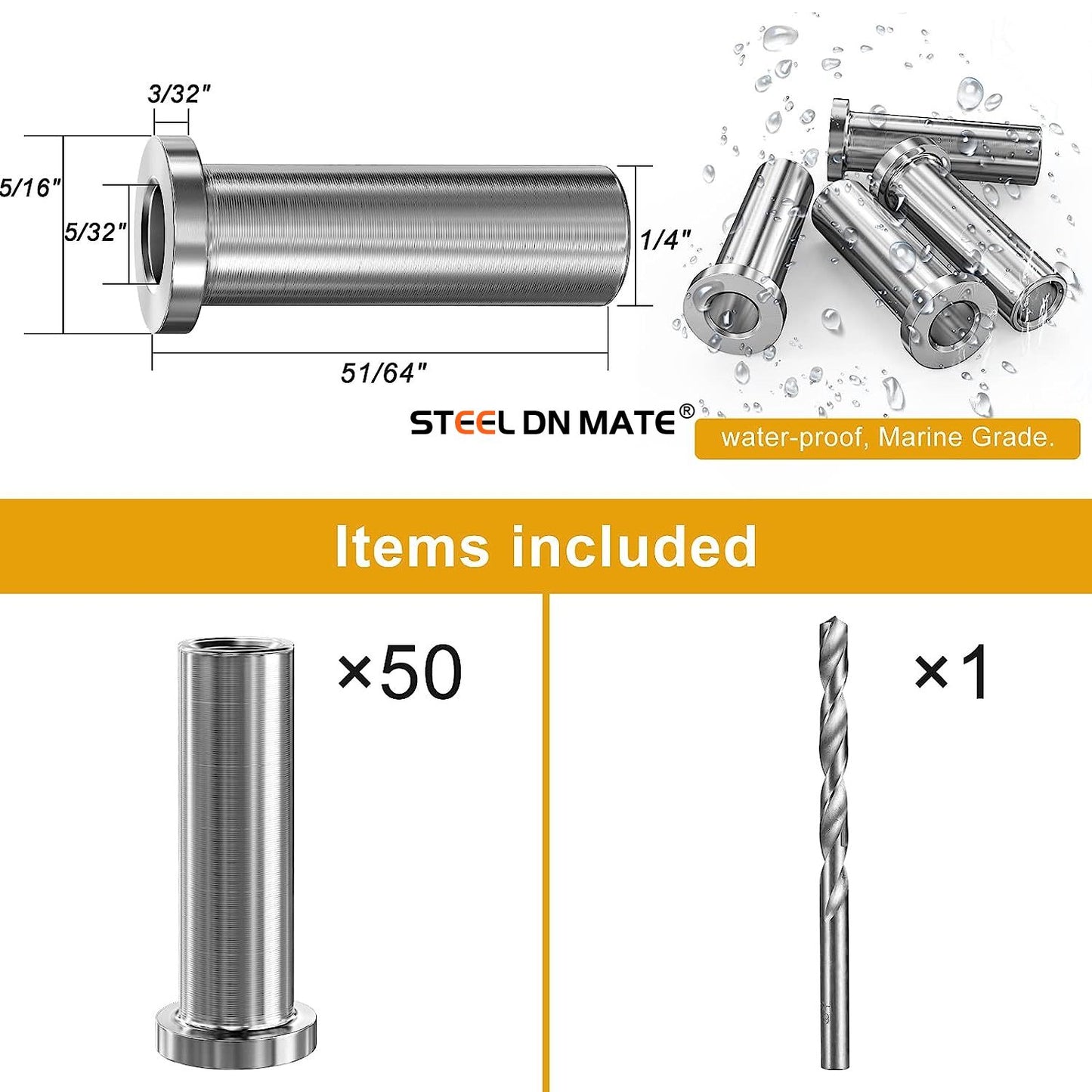

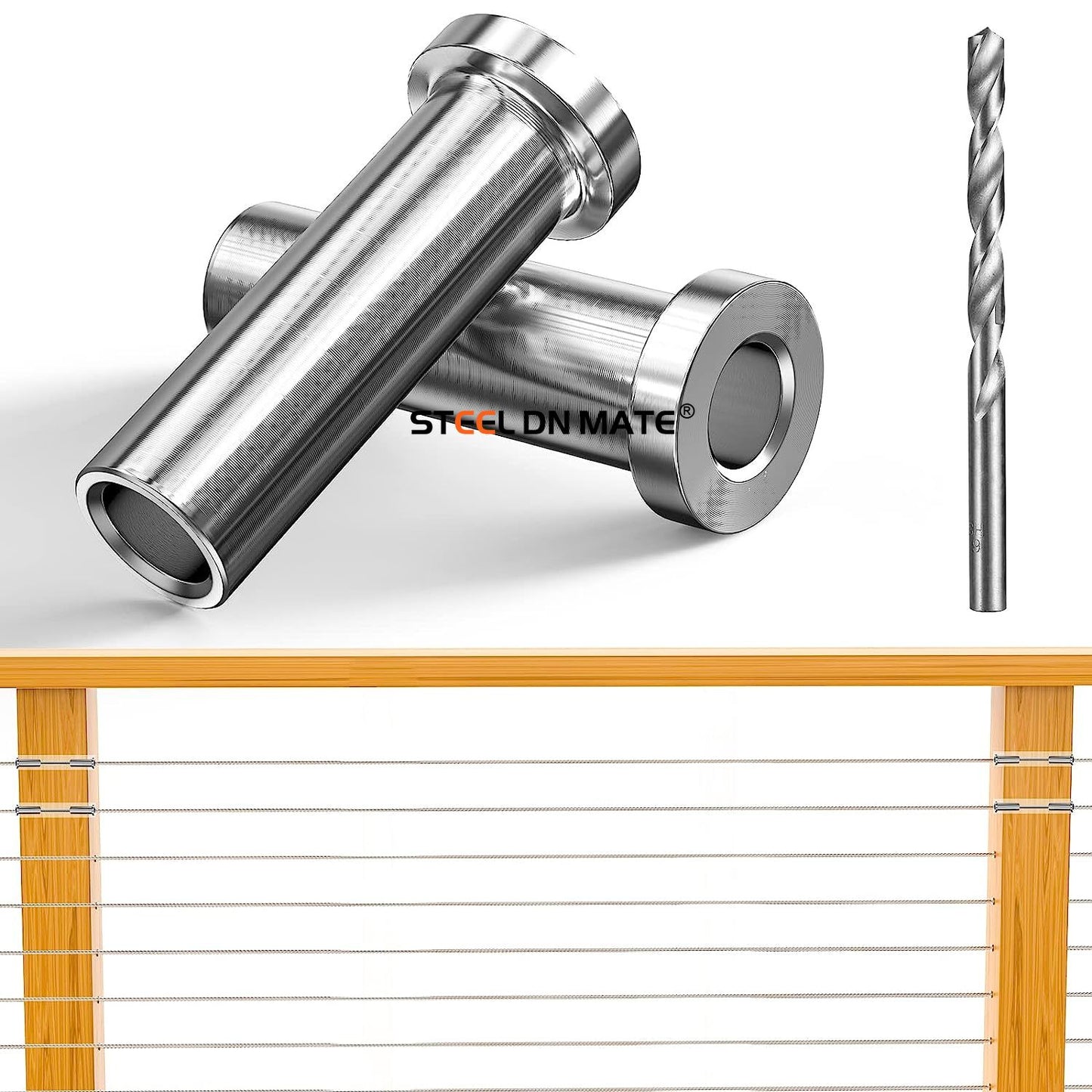

Size: Sleeve total length: 51/64 inch; Sleeve hole inner diameter: 5/32 inch; Drill Bit Diameter: 6.5MM. These T316 protector sleeves fit for 1/8" cable railing system. Calculation of sleeves quantity needed: 2 × QTY of intermediate posts × QTY of cable runs.
DIY a 1/8” cost-effective cable railing project, refer to Picture NO. 5: Protector sleeves DP10, 1/8" steel cable with cutter DW22, hydraulic crimper DC01, swage lag screw DM30, drill jig DG12. For the angle stair balustrade hardware, angle protector sleeve DF05 is recommended. You can scroll down this page to buy them all from Steel DN Mate in 2 minutes.











Product Description

minilogo
minilogo

MINI套筒
MINI套筒

Cable sleeves used in intermediate posts

mini
mini
Only work for 1/8" cable system

Steel DN Mate---the BEST Quality T316 SS protective sleeves

This cable railing hardware is simple but aesthetically pleasing, cleanest look

Unlike complext turnbuckle system, this system uses swage lag screw and protectors, makes it fairy simple to install and clean appearance after finish.

This SS 316 deck railing hardware fits 1/8" OD cable of railing system.

It is designed for timber/wood post.

Cost-Effective



  1. It is made of stainless steel T316 marine grade, featured by a long longevity.
  2. This lag screw system cost 33% LESS than turnbuckle’s.
  3. Low maintenance required.





Easy Installation



套筒1 300 300
套筒1 300 300





套筒2 300 300
套筒2 300 300





mini
mini

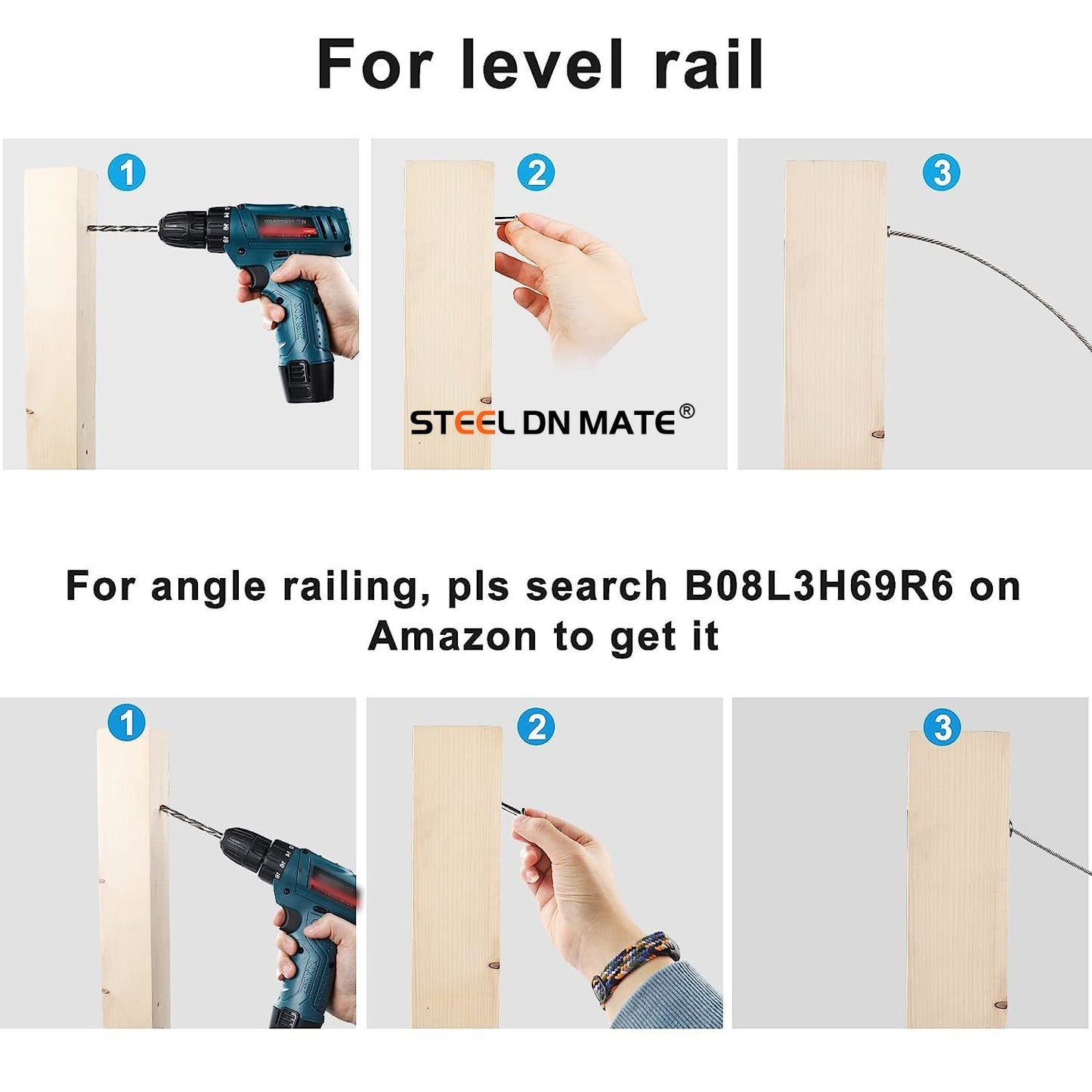

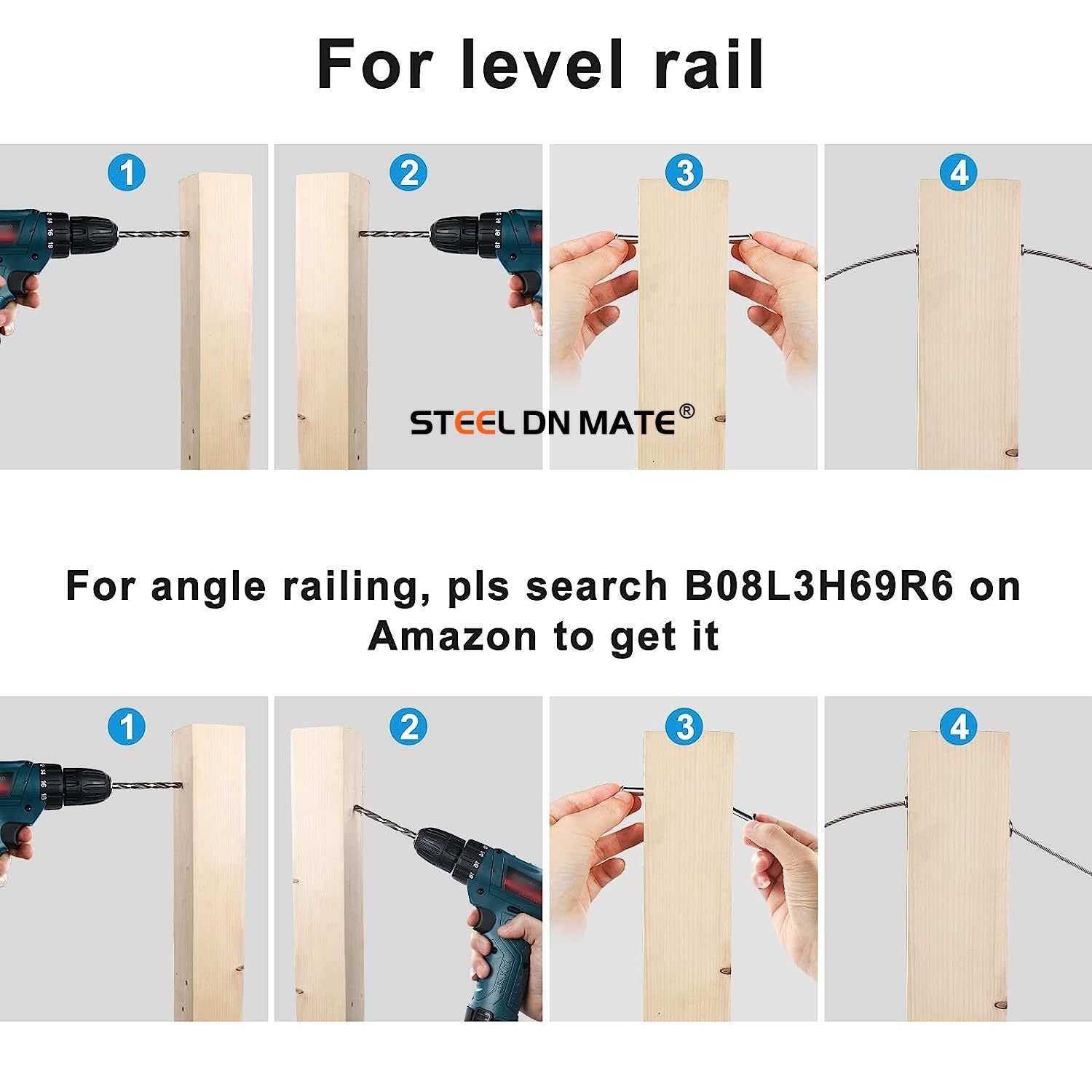

First



  1. Measure and mark holes
  2. Drill holes on the mark, a wood drill bit is included in the package.



Second

Put the straight protectors into the wood post, pass the 1/8" cable wire through. It is very easy and smooth. It will cover the rough holes, make it beautiful, also protect the wood.

Finish

After a simple installation, the level wood post protector brings a nice elegant look to your cable railing system. It never blocks your view when you rest on the deck. Clear view, Perfect for landscape and handrail.





protector sleeves
protector sleeves





4
4





扭木螺丝
扭木螺丝



How to caculate QTY you need?

Here is the fomular:

2 × QTY of intermediate posts × QTY of cable runs. For example,

5 intermediate posts, 10 cable runs, you'll need: 2 × 5× 10 = 100 pcs sleeves

Weather resistance, excellent resistance to corrosion

Whether indoor or outdoor, residential or commercial, our railing kits never get rusty, and can withstand exposure to saltwater, high humidity, and other harsh weather conditions.

We have mone-y back guaran-tee for this.

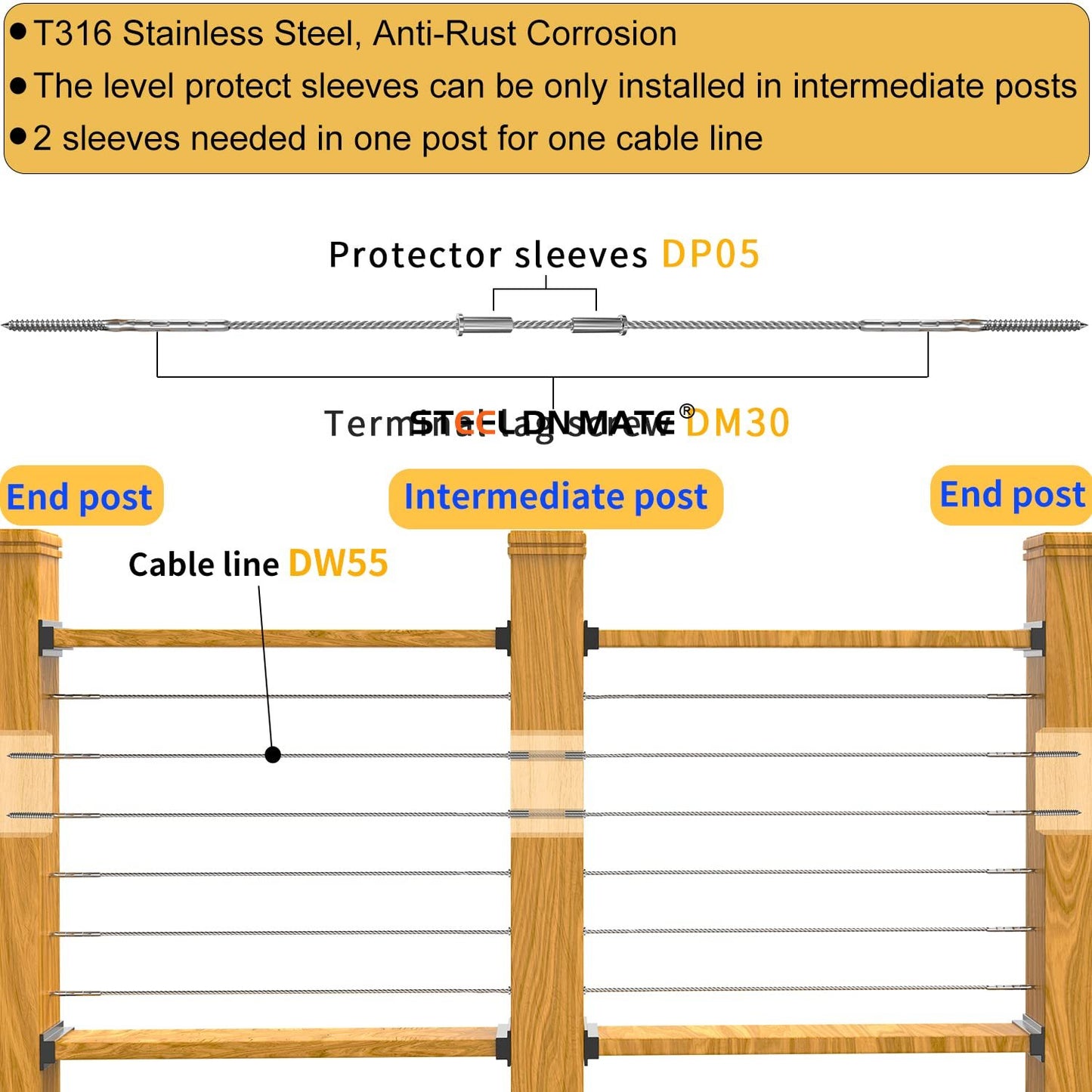

Work with Swage lag screw in the end posts

Steel DN Mate 1/8" swage lag screw, DM60 is recommended to work with these stainless protectors, this combines the most cost-effective railing project.



A cost-effective Level Cable Railing System

dp05
dp05

You could install this cable railing hardware on stairs, balconies and decking areas. It is widely used for indoor or outdoor.

Warm reminder:



  1. That the post spacing between two posts max 4 feet.
  2. The cable spacing between the 2 cable runs (upper and lower ) is 3".
  3. The maximum distance between two end posts of DM30 is 16 Feet.



Note: Some states may have special regulations, check with your local administration for building codes before installation.


木螺丝小图
mini
小图 钢丝绳
小图 液压钳
小图  定位器
45度
  Left & Right Swage Lag Screws DM30 Level Protector Sleeves DP05 1/8" SUS316 Steel Cable DW22 Hydraulic Crimper Tool DC01 Drill Jig DG12 45 Degree Angle Protector Sleeve DF05
Material T316 Marine Grade T316 Marine Grade T316 Marine Grade Steel Steel T316 Marine Grade
Rust-Proof
For Level / Angle All Level All All All Angle
Size 1/8" 1/8" 1/8" All 3/8", 5/16", 1/4", 3/16" 1/8" × 45°

套筒 场景图
套筒 场景图

Frequently bought together for a Cost Effective Cable railing System

One stop shopping from Steel DN Mate. Material list for cable railing system:

Left&right swage lag screws -- DM50

Level protector sleeves --DE05

Angle protector sleeves -- DT03

Drill jig guide -- DG12

Steel wire cable and cutter --DW01

Hydraulic crimping tool -- DC01

Woodpost cable railing is a simplified cable railing system with a terrific nice look. It replaces the complex turnbuckle with 2 lag screws, which not only make it easier install but also inexpensive.

You could install this cable railing hardware on stairs, balconies and decking areas. It is widely used for indoor or outdoor.
