1 8

Steel DN Mate

Steel DN Mate T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, 30 Pack Cable Railing/Stair Deck Railing, DIY Baluster Hardware, Wrench Included

Steel DN Mate T316 Stainless Steel Left&Right Handed Thread Swage Lag Screws for Wood Post of 1/8" Deck Railing Kit, 30 Pack Cable Railing/Stair Deck Railing, DIY Baluster Hardware, Wrench Included

$20.99 USD
$27.39 USD $20.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Number of Items

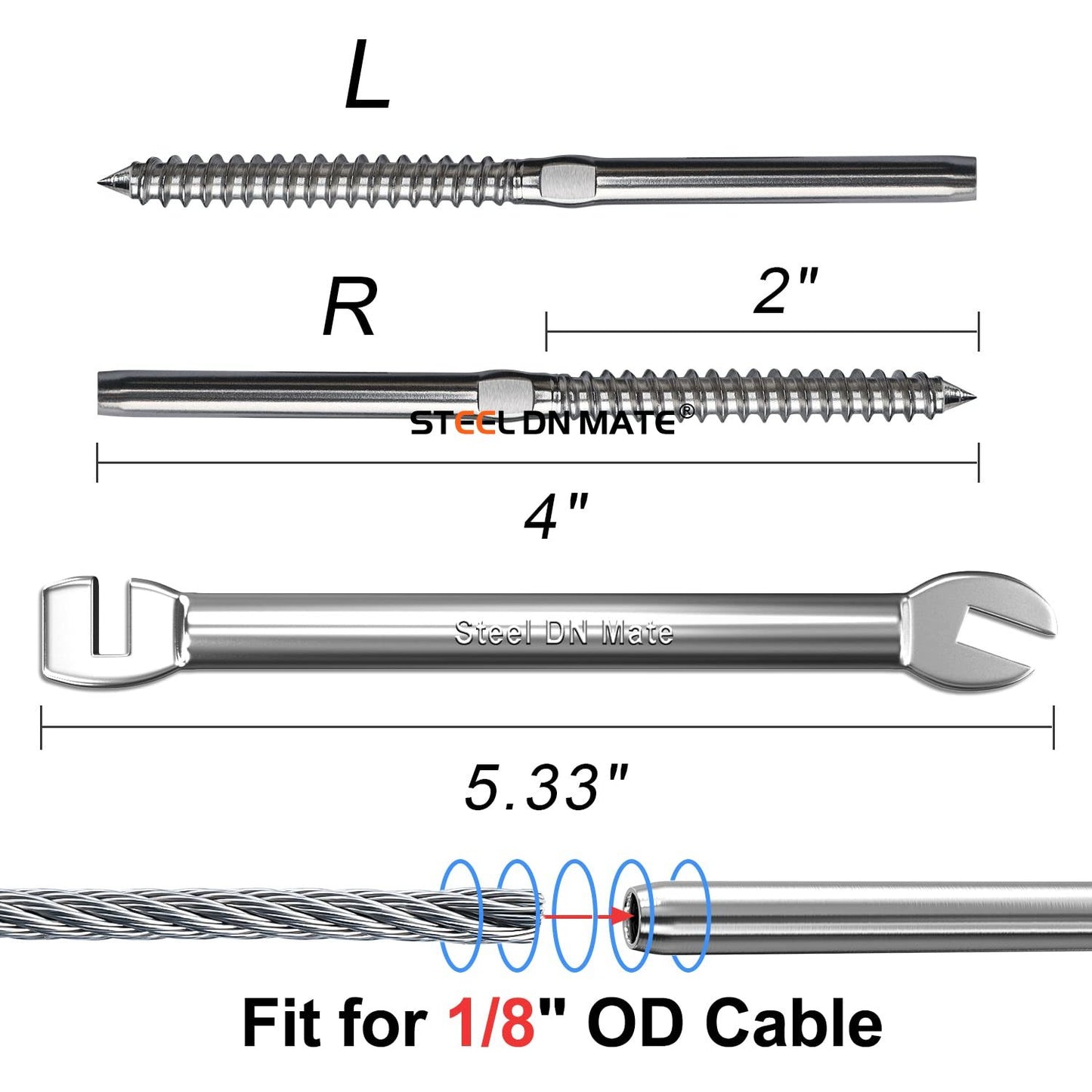

New deck railing design, clean and elegant. This cable railing kit includes 15 pcs left, 15 pcs right hand thread lag screws, 1 patent design wrench and 1 drill bit. Stainless Steel T316 material, anti-rust ,water and corrosion, marine Grade, good for indoor or outdoor usage. With our new made wrench, installation becomes much easier.
This deck railing hardware fit 1/8" OD cable of railing system. The thread screws are designed for timber/wood post. It will rotate the wire rope in the same direction, which resolves the problem of twisting the attached wire. Products without Left & right will bring you hassle and might damage the cable.

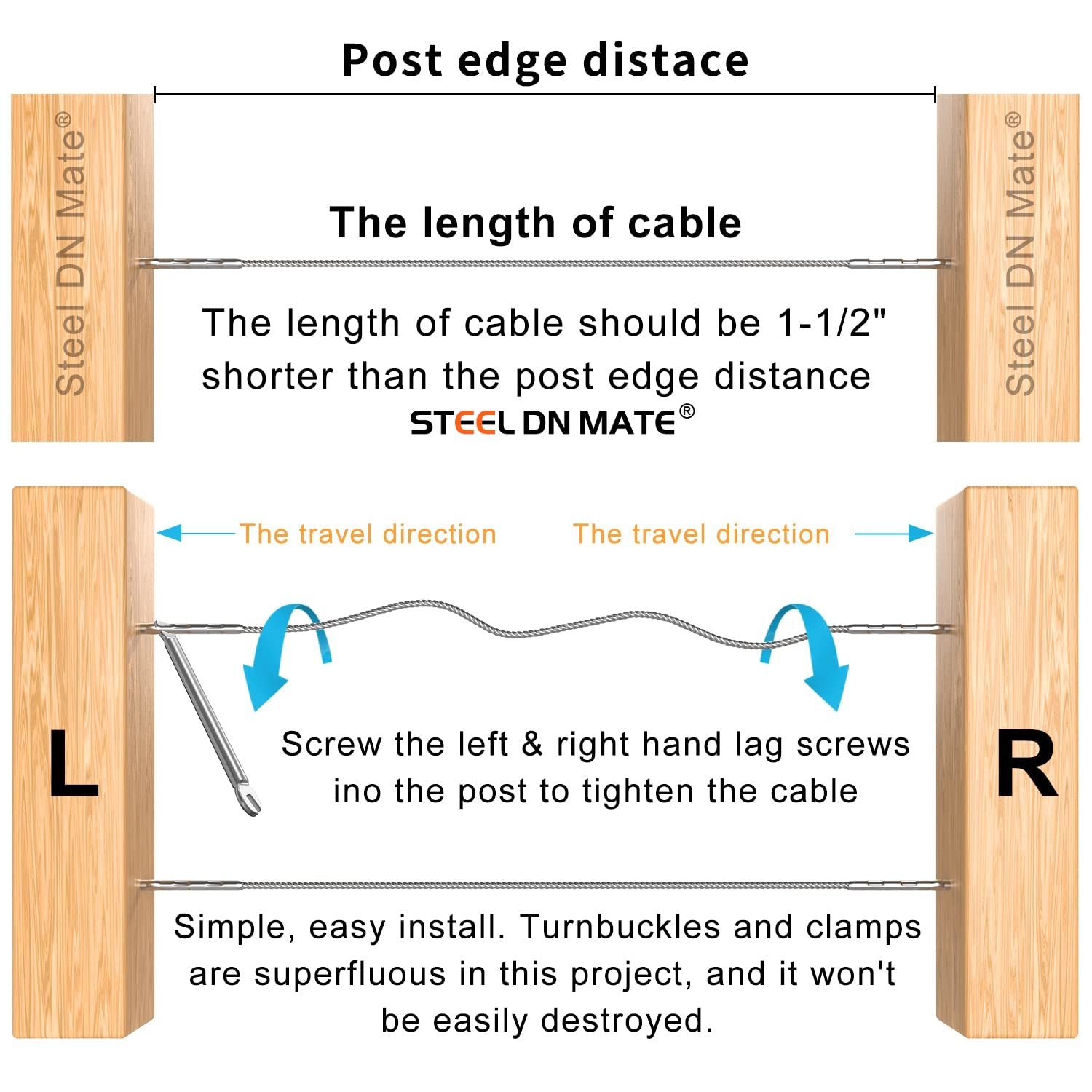

Length of cable should be 1-1/2" shorter than wood surface distance（as shown in pic.4); if you want to DIY a high quality cable railing system, standard 1/8" (OD) cable which was made of T316-stainless steel is recommended.
By the design of Right&left handed thread, of course it can be used to adjust the tension of attached cable, so the turnbuckles are not needed in the railing system. And this cable railing won’t be easily unfixed or destroyeded. We suggest the following cable rail kits for a cost-effective cable railing system: 1/8" lag screw DM15, 1/8" steel cable and cutter DW40, hydraulic Crimper DC01. For angle stair railing, drill jig DG12 is recommended. You can scroll down this page to get them, or find them by search on amazon, steel dn mate+ model number, like steel dn mate DW40.
The lag screws could be drilled into wood to adjust the tightness without extra turnbuckle or tensioner. Deck and Stair Cable railing system is not only simple but also won't block your view. We offer lifetime service and 10 years warranty after sales, any question, just contact us for a happy communication.

Product Description

Logo
Logo

5
5



1
1

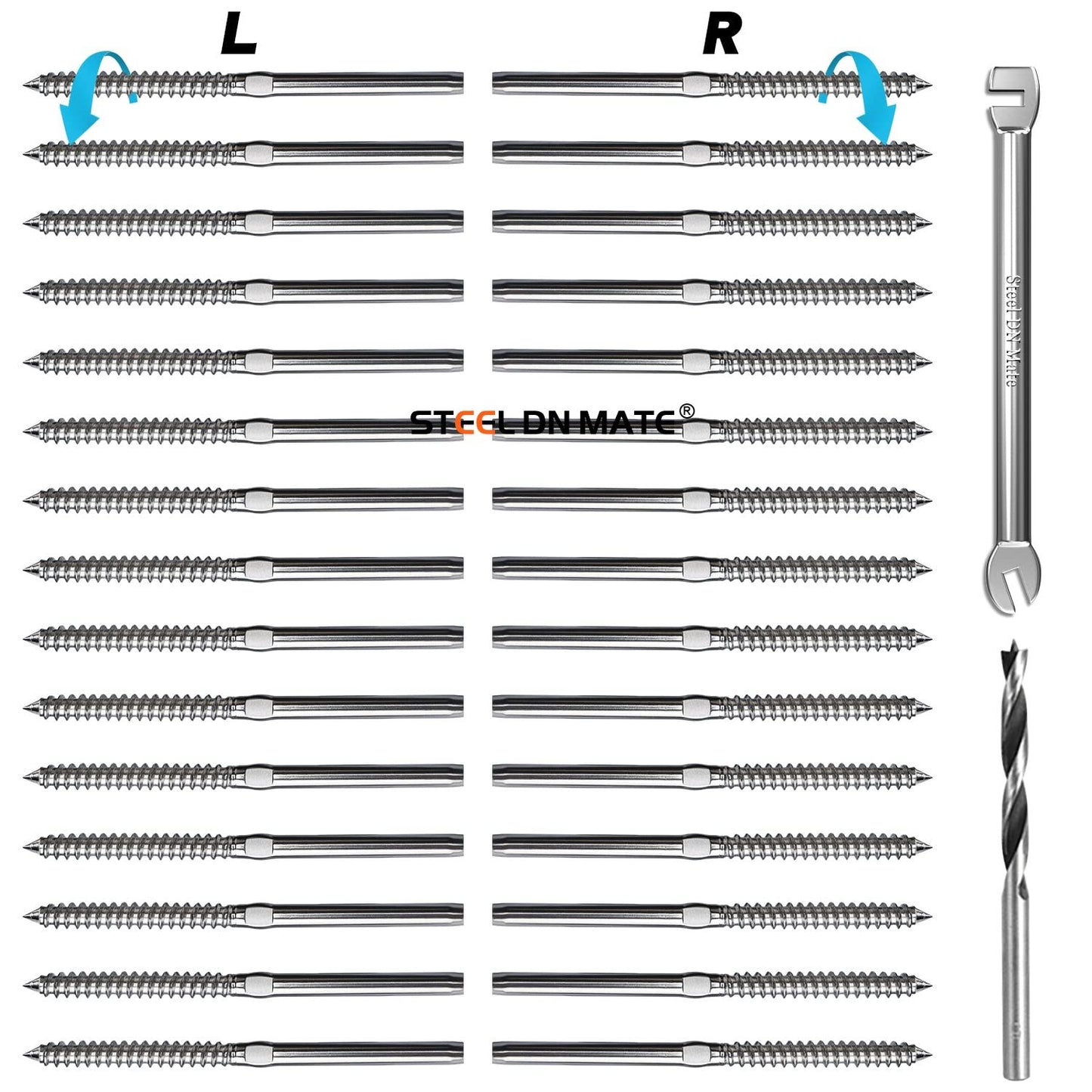

Package includes：



  • Left handed thread lag screw：15 Pcs
  • Right handed thread lag screw：15 Pcs
  • OD drill bit：1 Pcs
  • Steel DN Mate Wrench: 1 Piece



  • 10 Years warrant-y
  • Life-time service
  • 15 Cable Runs

Steel DN Mate-- BEST Quality Handed Thread Swage Lag Screws

Left & Right Thread Swage Lag Screws

T316 Stainless Steel material, anti-rust ,water and corrosion，marine Grade, good for indoor or outdoor usage.

This deck railing hardware fit 1/8" OD cable of railing system.

The thread screws are designed for timber/wood post.

This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed.

  • Stable and Durable
  • Clear look
  • Easy to install
  • Marine Grade waterproof, rust-free, anti-corrosion


INSTALLATION TIPS



1
1





2
2





3
3

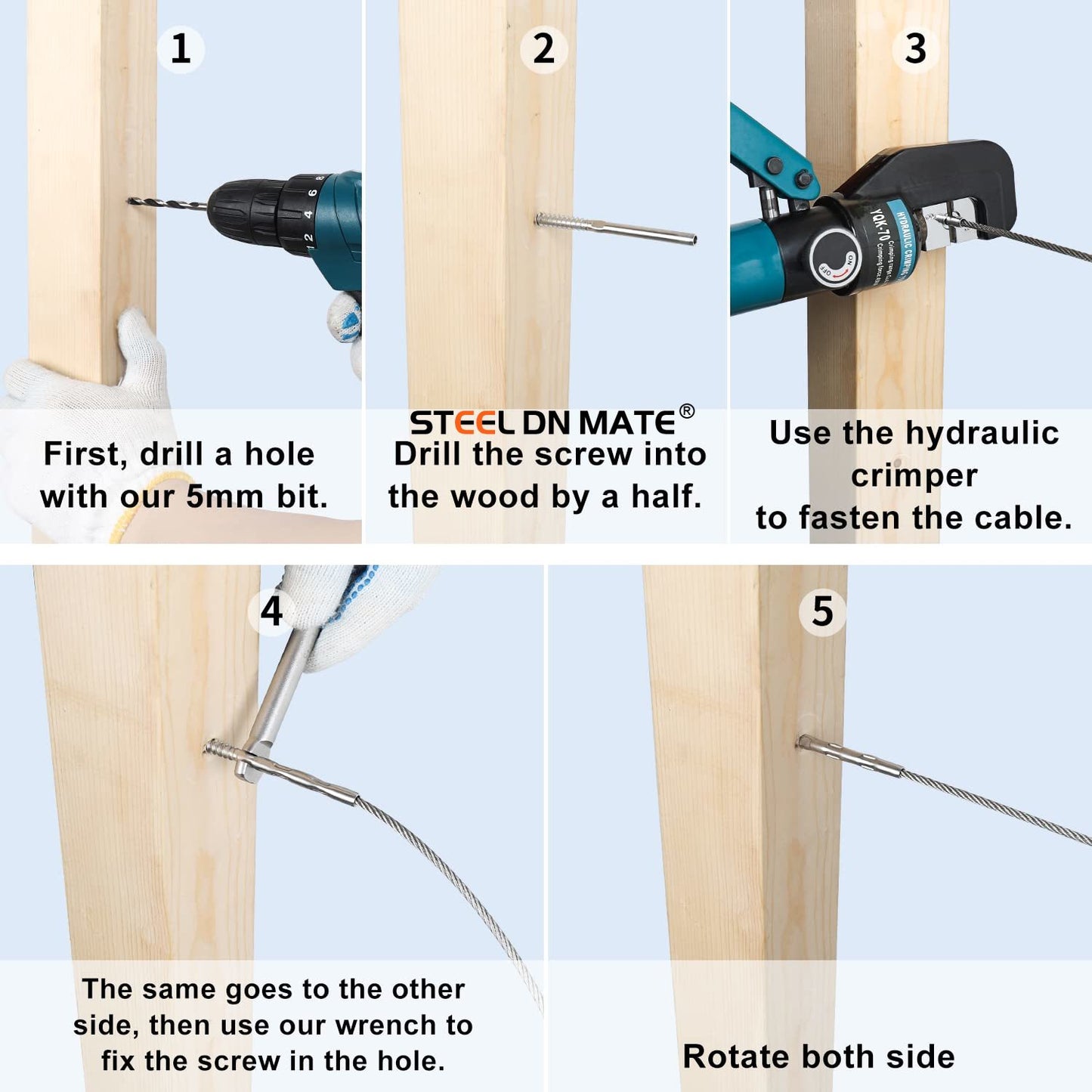

Step 1

Measure the distance for the 2 wood post surface twice, and cut once. The length of cable should be 1-1/2 inch shorter than the distance of the two posts;

Step 2

Connect the cable to the lag screws, swaging the screw with Steel DN Mate hydraulic crimper, one end with left hand thread and the other end with right hand thread;

Step 3

Screw the lag screws into the holes in the post which have been drilled by the drill bit to adjust and tighten the cable. Turn the right & left wood screws thread in the same direction.

4
4

Cable Raililng Hardware for level or vertical railings-- All in One Stop Shopping station by Steel DN Mate

One Stop Shopping station, it will take about 3 minutes for you to shop all.

What cable railing hardware you must have to buld the above cable railing system?

1) Swage lag screws, right this item, just add to your cart;

2) 1/8 Stainless Steel Cable marine grade, search it on amazon : B07YY46T7M, or Model number DW40, we have different length from 110ft to 1000ft.

3) Hydraulic crimper, search it on amazon : B08BQVKM2Z, or Model number DC01

This swage lag screws system is not only inexpensive, but also it is simple with elegant look, and won’t be easily unfixed or destroyed....

We suggest you get the wood post locally for economic reason.

FEASTURES



7
7





5
5





6
6



Easy installation-Deck Railing Kit

It is very easy and simple with our tools and user guide. One man could DIY the project.

Marine Grade-Cable Railing Hardware

Steel DN Mate deck Railing Kit is T316 Marine Grade, rust-free,

Elegant Look-Deck Railing System

Clear look, it won't block your view, the best inexpensive cable railing


Cable Raililng Hardware for wood post, level or vertical railings,stair railings-- All in One Stop Shopping station by Steel DN Mate

22
22

Other railing cable kits steel DN Mate offer:

For metal post, search: B09QHXGXTN or DB10



  • Cable Length could range from 1-1/8"（tight） to 1-1/2"（tightest） shorter than wood distance.
  • Recommended the maximum distance between two end posts is 16 Feet.
  • Recommended that the post spacing between two posts is 3 to 4feet.
  • Recommended that the spacing between the cable space (upper and lower screw holes) is 4".



Note: Some states may have special regulations, check with your local administration for building codes.


black
2
斜坡
11
2
5
  T316 Stainless Steel Lag Screws T316 Stainless Steel 1/8'' Wire Cable T316 SS Angle Stair Protector Sleeves 30 45 90 Angle Drill Jig Guide T316 SS Protector Sleeves Steel DN Mate Hydraulic crimper
Material T316 T316 T316 T316 T316 Metal
Rust-proof
For 1/8” cable
Indoor/Outdoor use
Color Black Silver Silver Orange Silver
Fit for Wood Instructure All Wood Instructure Wood Instructure All All
